SVS Sound 3000 Micro
For the first-time ever design for SVS 3000 Micro , two fully active 8-inch woofers are mounted on opposite sides of the sealed cabinet and move in perfect unison to generate stunning low frequency output with crisp, musical transients. The usable surface area of two fully-active 8-inch woofers firing in opposite directions achieves performance on par with significantly larger single-driver subwoofers. Its tight, punchy output obliterates multi-driver passive radiator subwoofer designs known for their bloated and boomy sound.
SVS Sound 3000 Micro Active Subwoofers
- Connects via Bluetooth for convenient control.
- Fully Active Dual Opposing 8-inch Drivers.
- Innovative Motor Assembly Maximizes Current Delivery for Active Dual-Driver Array.
- Sledge STA-800D2 Amplifier gives Massive Output with Precise Driver Control.
- 23Hz to 240Hz +/-3dB
- Roll-off slope specifically optimized to take maximum advantage of available room gain
- 2-meter ground plane away from reflective structures (quasi-anechoic)
- Dimensions (including grilles): 10.9” (278mm) H X 11.7” (297mm) W X 10.7” (271mm) D
- Weight: 22.5lbs (10.2kg)
- Packaged Dimensions: 13.9” (353mm) H X 15.4” (390mm) W X 15.4” (390mm) D
- Packaged Weight: 26.7lbs (12.1kg)
- Dual opposing 8-inch active drivers designed acoustically and electrically in parallel
- Rear-mounted internal amplifier with Intelligent Control Interface (ICI)
- High-end Piano Gloss Black and Piano Gloss White finish options
- Screw-in rubber feet
- Structurally reinforced MDF cabinet construction
- Dual opposing 8-inch drivers designed electrically and mechanically in parallel for massive output from and a sonically inert cabinet, and ultra-low system vibration even at maximum output levels
- Precisely tuned overhung motor configuration for precise woofer control at all drive levels
- Proprietary injection-molded NBR surround built for extreme-excursion and longevity at reference playback levels
- Total Excursion (each driver): 24mm Xmax, 37mm Xmech.
- 1100 aluminum single piece cone and junction provide excellent stiffness and a lightweight moving mass with optimized thermal conduction.
- High-current 4-layer copper voice coil winding minimizes distortion and power compression, while providing effective heat dissipation and tuned magnetics for accuracy at high excursion.
- Powerful proprietary ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transient speed.
- Precision machining for motor and narrow tolerance suspension parts maintain control and linearity at full excursion
- 6061 aluminum shorting ring improves linearity of magnetics and reduces distortion and gap inductance
- High-temperature 5025-H18 aluminum former/bobbin
- 5-inch composite poly-cotton extreme-linear-excursion spider
- Dual 24-strand plated copper leads
- High-performance oversized Y30 Ferrite magnet motor
- Top plate assembly with low carbon 1010 steel completes the driver’s precision magnetic circuit
- Oversized low carbon 1010 steel U-yoke for maximum cooling
- Dual 8-inch baskets with FEA optimized powder-coated frames for maximum rigidity, thermal conductivity, and mechanical damping
- Sledge STA-800D2 with 800 watts RMS continuous power (2500+ watts peak dynamic power)
- High-efficiency Class-D switching topology with massive 25-amp 600-volt MOSFETs results in ample current, vanishing distortion and excellent linearity to generate massive low-frequency output with pinpoint accuracy
- High-resolution 50MHz Analog Devices Audio DSP with double precision 56-bit filtering industry best processing power for advanced control and pristine output
- User adjustable settings for system performance optimization: low pass filter, phase, polarity, room gain, and three parametric equalizers
- Groundbreaking SVS subwoofer DSP and Bluetooth smartphone control app for iOS, Android and Amazon devices allow custom tuning and user presets for every room and system
- Stereo RCA input and output with ultra-wide input voltage for consumer and professional audio applications

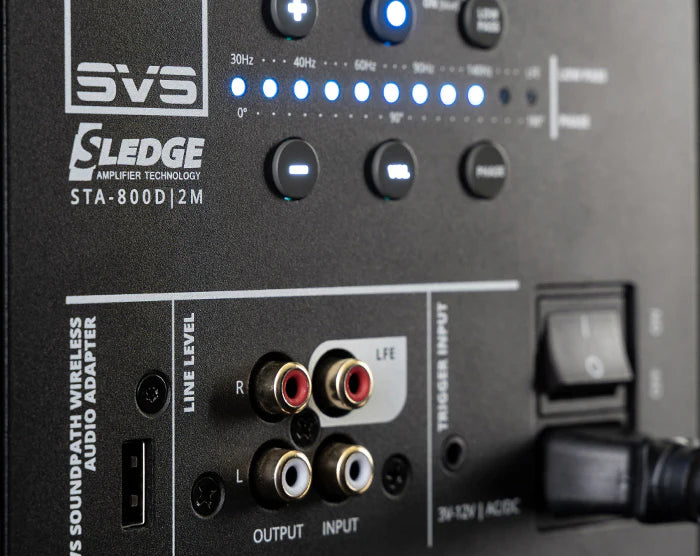

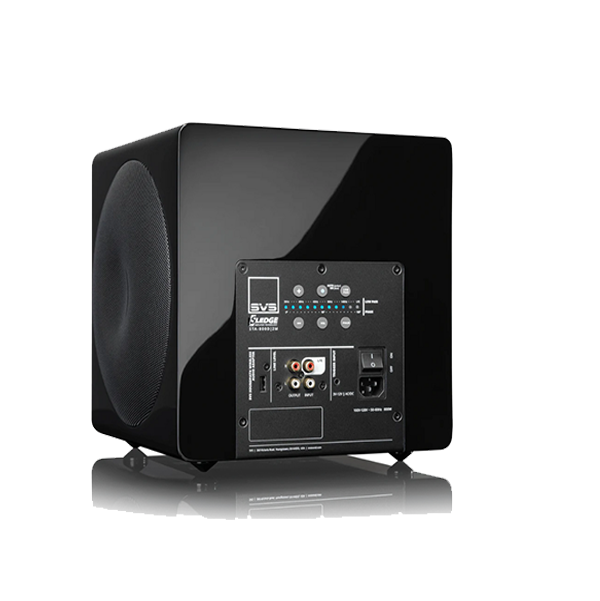

- Rear panel Intelligent Control Interface (ICI) user interface with blue-LED light bar display and easy push-button controls
- Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience
- Input impedance 16 kΩ (unbalanced RCA)
- Environmentally-friendly 0.5-watt low-standby-power consumption
- RoHS compliant, lead-free construction, world-wide safety certifications

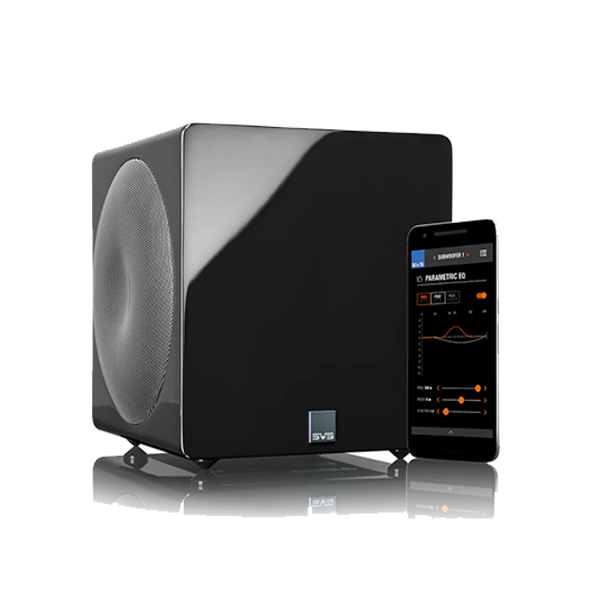

- Powerful Bluetooth-controlled subwoofer DSP app works with iOS, Android, and Amazon operating systems
- Provides easy and convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass-management functions
- Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat
- Bidirectional-feedback shows adjustments in real time on both app and subwoofer rear panel interface
- Dual protective non-resonant steel mesh grilles
- Isolating elastomer feet
- Heavy-duty, high-current 6-foot power cord
- Quick Start Guide
3000 Series Technology
Inspired Subwoofer Engineering for Uncompromised Performance.
The new SVS 3000 Micro features technology breakthroughs from the 16-Ultra Series, 4000 Series, 3000 Series, 2000 Pro Series, and 1000 Pro Series. This technology joins with exclusive 3000 Micro innovations to set a new standard for subwoofer performance value. More people than ever can now enjoy room-shaking bass below the threshold of human hearing with unerring accuracy and control.
Reference Subwoofer Performance Just Went Micro.
The challenges of designing a mini subwoofer capable of chest-pounding output at the lowest frequencies, while maintaining effective thermal and energy management in a micro-sized enclosure, has always been the holy grail of subwoofer brands. Previous designs were flawed with weak output, distortion, and uncontrolled movement of the cabinet itself.
3000 Micro is like a magic trick— small enough to fit anywhere and capable of deliveringbreathtaking bass from a shockingly compact 10-inch enclosure. For the first-time ever, a micro subwoofer that does not compromise on performance.
SVS engineers had to bend the laws of physics designing a micro-sized subwoofer capable of massive, pristine output in HiFi and home theater systems. Reference amplifier technology from the flagship SVS 16-Ultra subwoofers was applied in the Sledge STA-800D2 amplifier with discrete MOSFET outputfor effortless, on-demand current with unerring control.

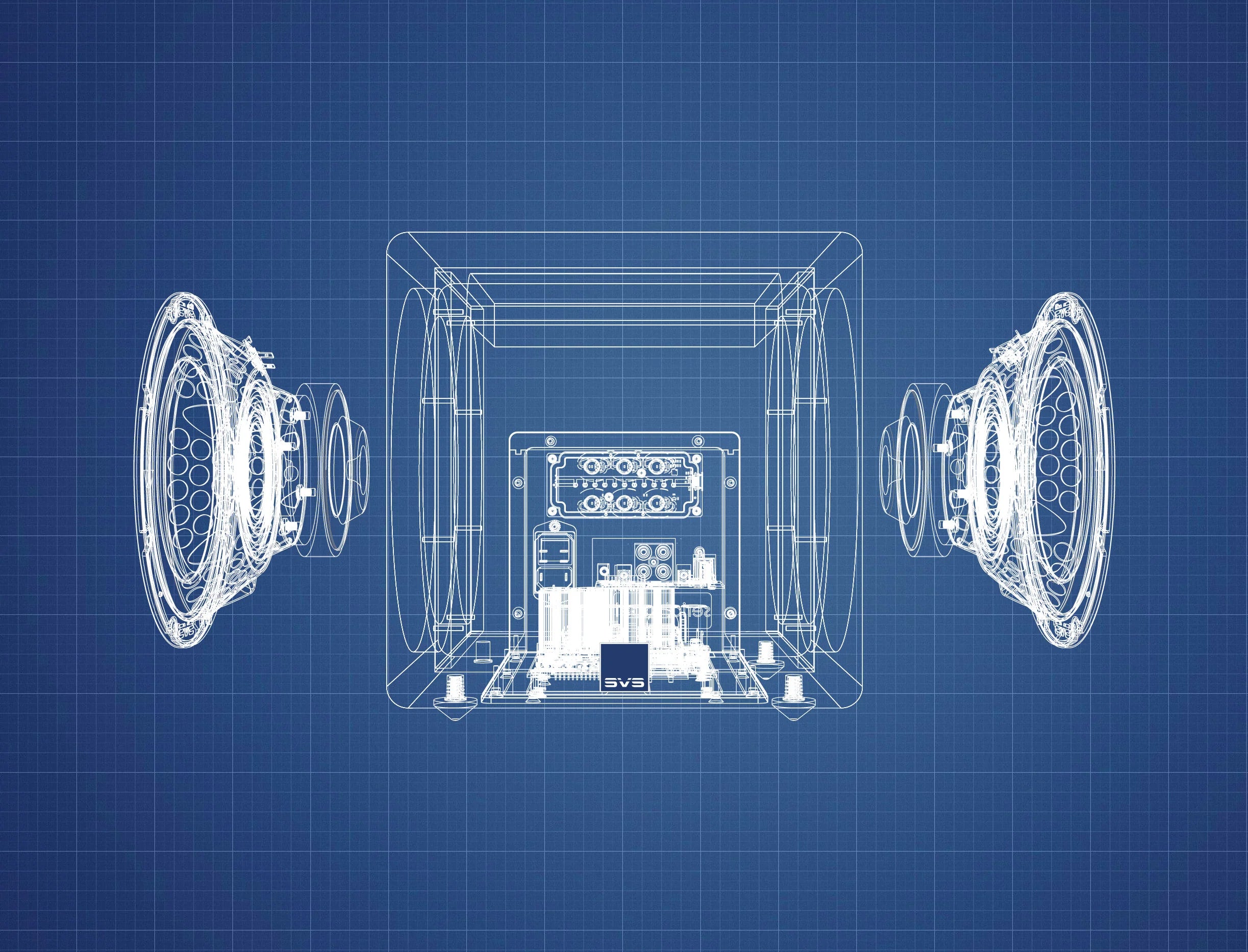

Fully Active Dual Opposing 8-inch Drivers – Defy the Laws of Physics with Room-Shaking Output and Pinpoint Accuracy
A first-ever design for SVS, two fully active 8-inch woofers are mounted on opposite sides of the sealed cabinet and move in perfect unison to generate stunning low frequency output with crisp, musical transients. The usable surface area of two fully-active 8-inch woofers firing in opposite directions achieves performance on par with significantly larger single-driver subwoofers. Its tight, punchy output obliterates multi-driver passive radiator subwoofer designs known for their bloated and boomy sound.
By firing in opposite directions, the mechanical energy transferred to the cabinet is effectively canceled out. This creates a sonically inert environment and solves the longtime curse of micro subwoofers, which are known to “dance” or “walk” across the room.
The active dual drivers are connected in parallel to a single power amplifier. Each receives the same amount of current, ensuring pinpoint control and more precise, accurate bass. The use of aluminum throughout the woofer, from bobbin to cone, creates a lightweight, stiff, and thermally-optimized driver without resonances or extraneous vibrations.

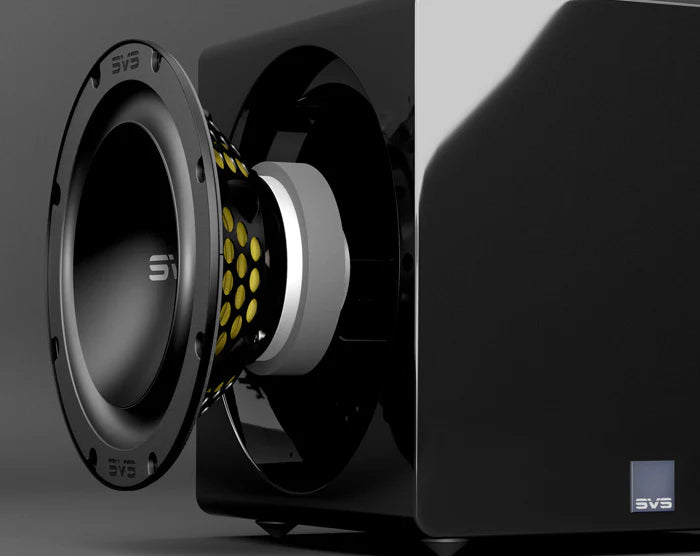

Innovative Motor Assembly - Maximizes Current Delivery for Active Dual-Driver Array
An oversized, vented motor structure is optimized for efficient thermal and mechanical-energy management in a confined space. Massive electromagnetic force produced by the motor, in symphony with the high current driving power of the Sledge amplifier, allows the 3000 Micro to maximize on the output potential of the dual drivers.
Lightweight and rigid aluminum vented cone with composite fiber dustcap generates massive output with pinpoint accurate frequency response.
Long-throw parabolic surround and proprietary injection molded gasket ensure longevity and allow extreme excursion for room-energizing bass.
Sledge STA-800D2 Amplifier – Massive Output with Precise Driver Control
A driver is only potential and requires and equally potent amplifier. Extreme challenges existed for SVS engineers when designing an amplifier capable of powering fully active dual 8-inch drivers at reference levels in a micro-sized cabinet. How to maximize SPLs while maintaining accuracy? How to optimize on the potential of room gain? How to maintain proper cooling while achieving massive SPLs?
- High Current Output from Fully Discrete MOSFETs with the efficiency of Class D amplification allows the Sledge STA-800D2 amplifier to generate massive amounts of current enabling immense output with surgical precision.
- Optimized frequency response curves for the sealed cabinet 3000 Micro allow the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass.
- Sophisticated multi-band limiters enable the system to behave effortlessly move air and with complete control, even when played at extreme levels.
Sophisticated 50 MHz DSP Engine – Unrivaled Processing Power from a Home Audio Subwoofer
A 50 MHz Analog Devices DSP, normally reserved for high-end separate audio components, delivers sophisticated control and custom response curves optimized for real-world output and acoustically tuned room gain.DSP plays a huge role in making the 3000 Micro subwoofer sound far bigger than its size. SVS engineers painstakingly crafted an in-room frequency response curve that fully maximizes on the potential of a room’s boundaries to produce greater output and deeper bass extension without bloat or boominess. The result, a mini subwoofer that far exceeds expectations given its size.
