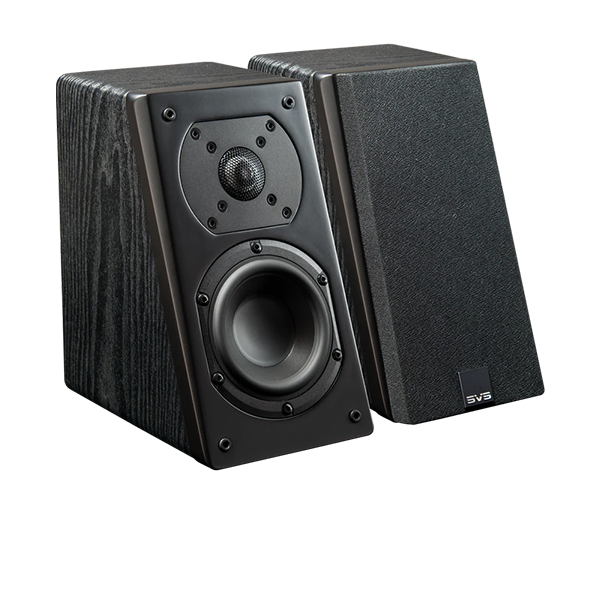

SVS Sound Prime Elevation
The SVS Prime Elevation is one of the most versatile home theater speakers ever created. Engineered as a height effects speaker for Dolby Atmos®, DTS:X®, and Auro-3D®, it can also serve as a front, center, surround, or LCR solution when wall- or ceiling-mounted. With its angled front baffle, the Prime Elevation delivers a highly immersive sound field, making it the perfect solution for rooms where traditional in-ceiling or surround speaker placement is not practical.
Share:
SVS Sound Prime Elevation
Regular price (/)
SVS Sound Prime Elevation Height Effects Speakers (Piano Gloss Black)
- Dolby Atmos® / DTS:X® Ready – Designed to bring true overhead height effects to home theaters.
- Versatile Placement – Works as front, center, side, surround, or height channel.
- Angled Baffle Design – Directs sound precisely toward the listening area for better immersion.

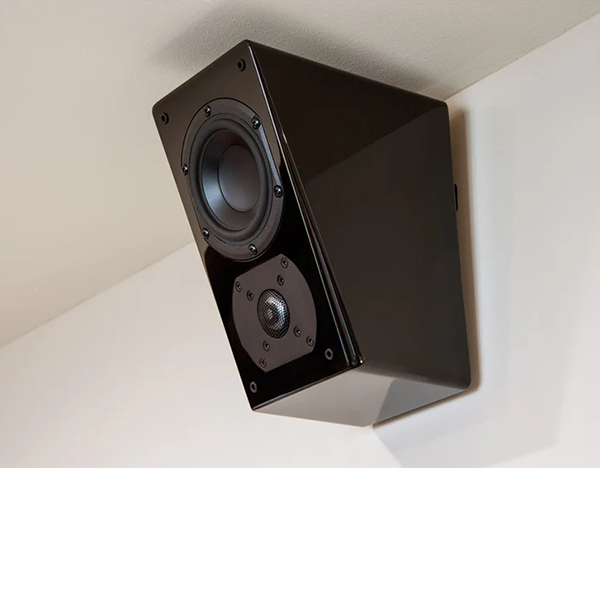

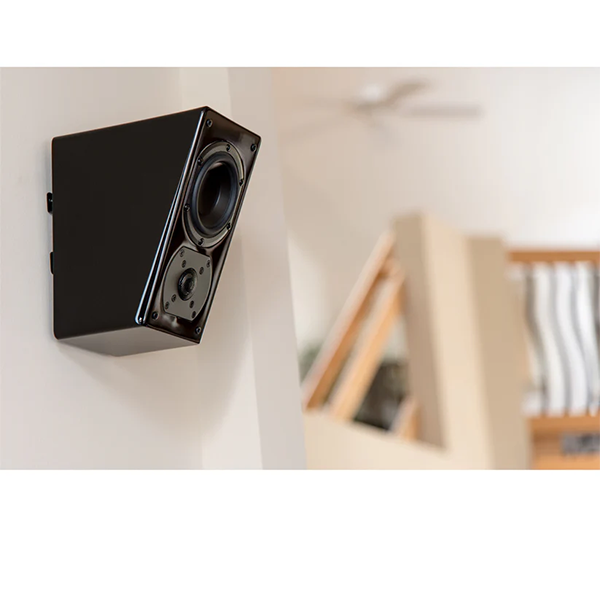

- High-Performance Drivers – 4.5” mid-woofer + 1” aluminum dome tweeter for clear, dynamic sound.

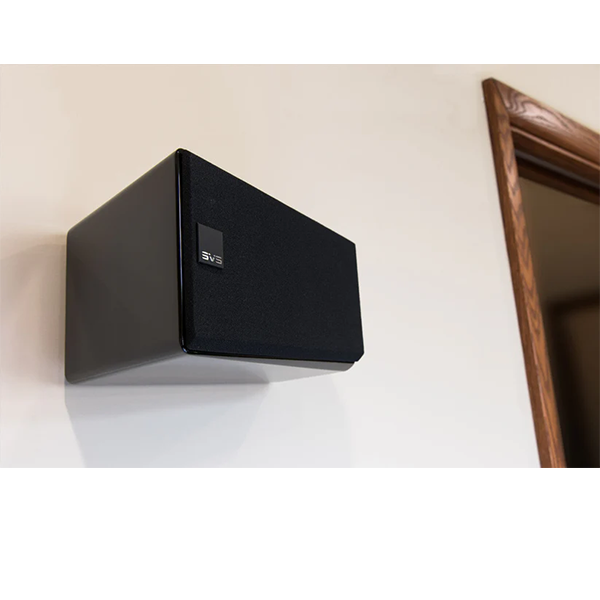

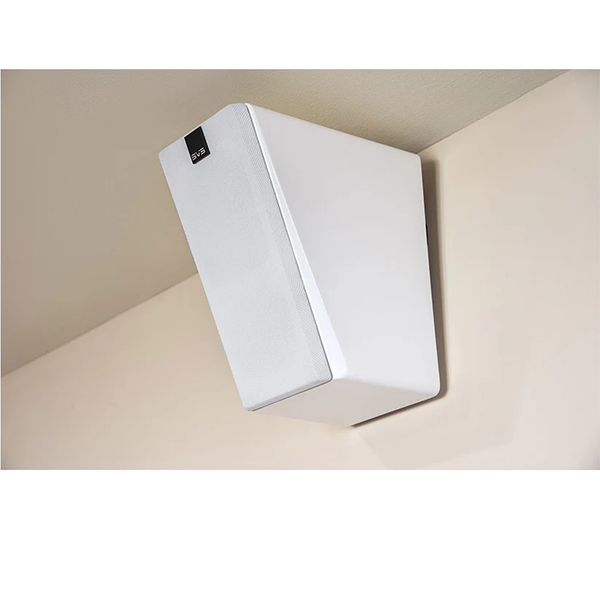

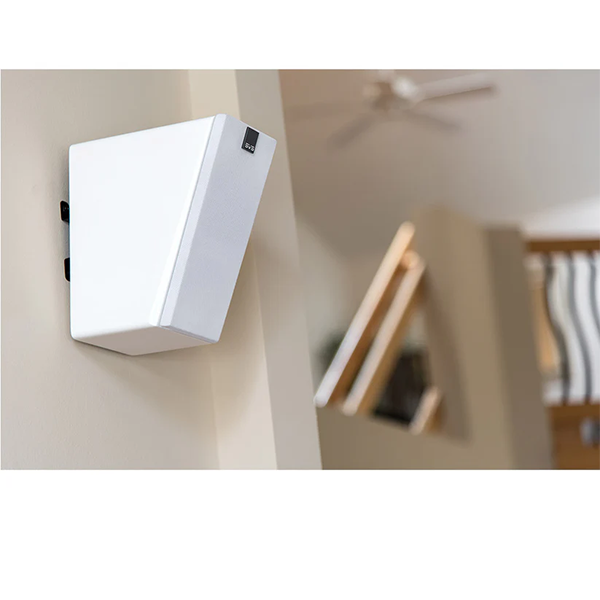

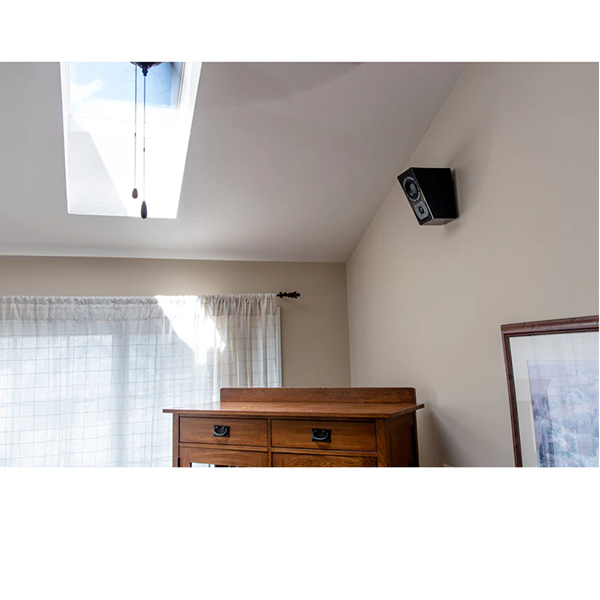

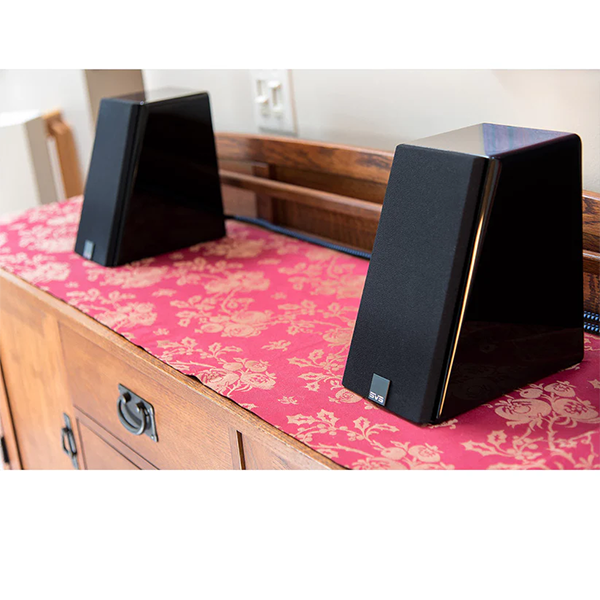

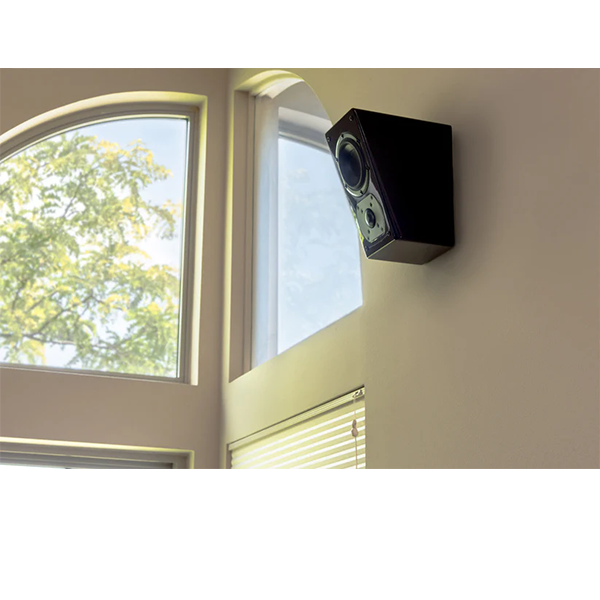

- Flexible Mounting – Can be wall-mounted, ceiling-mounted, or placed on stands/shelves.
- Powerful & Compact – Delivers room-filling performance in a sleek, space-saving cabinet.
- Seamless Integration – Blends perfectly with other SVS Prime or Ultra speakers.
Speaker Type
2-way direct-radiating home theater speaker (Height/Atmos); also usable as front/center/surround/LCR
Tweeter
1" (2.5 cm) aluminum dome with FEA-optimized diffuser
Mid/Woofer
4.5" (11.4 cm) polypropylene cone
Port
Rear-firing bass reflex port
Frequency Response
55 Hz – 25 kHz (±3 dB)
Sensitivity
87 dB (2.83 V @ 1 m, full-space, 300–3 kHz)
Nominal Impedance
8 ohms
Recommended Amplifier Power
20 – 150 W
Crossover Frequency
~2.5 kHz (12 dB/octave slopes)
Dimensions (H × W × D)
9.25" × 5.4" × 7.9" (approx.) including grille and bracket
Weight
Approx. 7.8 lbs (3.5 kg)
Terminals
5-way binding posts (bare wire, pins, spades, bananas)
Mounting Flexibility
Multi-Angle Wall Bracket included; supports wall, ceiling, or stand placement; ¼″-20 threaded insert for alternative mounts
Cabinet
Rigid, acoustically inert MDF with internal bracing; removable grille; elastomer bumper feet
