SVS Sound Ultra Evolution Nano

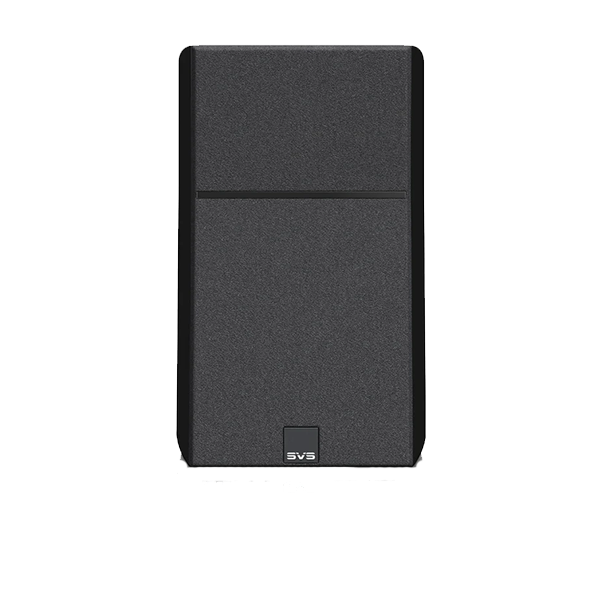

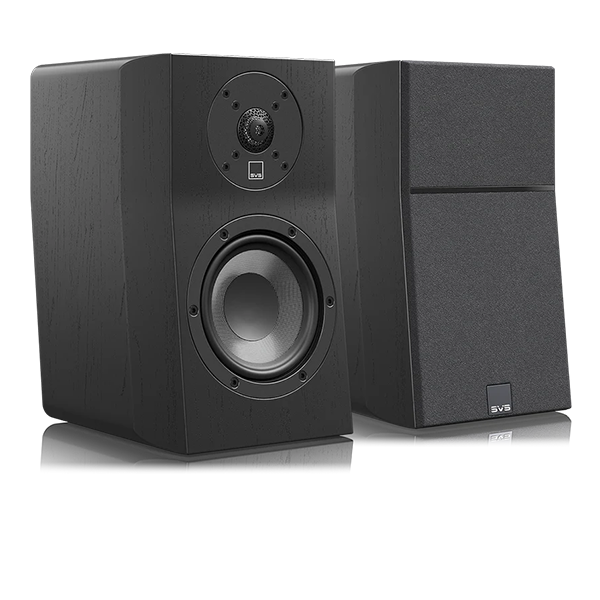

SVS Sound Ultra Evolution Nano Bookshelf speakers (Piano Gloss Black)
- Time-aligned curved front baffle aligns tweeter and woofer acoustics for precise imaging and immersive soundstage.
- 1″ diamond-coated aluminum dome tweeter with organic cell lattice diffuser—ultra-rigid for effortless, clear highs and extended frequency response.
- 5.25″ glass-fiber composite mid-woofer housed in precision-cast aluminum basket for accurate mids, deep bass, and dynamic control.
- 2-way premium crossover uses high-grade capacitors, inductors, and PCB for seamless driver integration.
- Acoustically tuned enclosure with FEA-optimized MDF, internal bracing, chamfered baffle, and magnetic grille for resonance-free clarity.
- Wide-flared rear bass-reflex port (1.6″) delivers efficient and tight low-frequency extension.
2-way vented (bass-reflex) bookshelf speaker
1″ diamond-coated aluminum dome with organic cell lattice diffuser
5.25″ glass-fiber composite cone with precision-cast aluminum basket
44 Hz – 40 kHz (±3 dB)
6 Ω
85 dB (2.83 V @ 1 m, full-space, 300–3 kHz)
20 – 150 W per channel
2-way premium network (~1.9 kHz crossover)

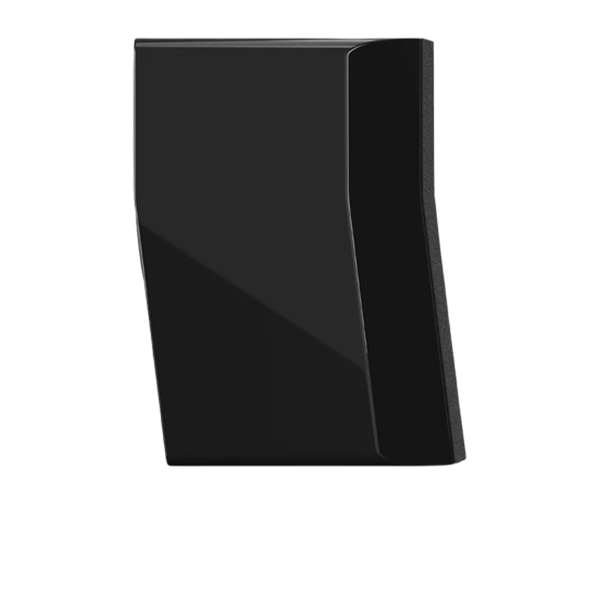

FEA-optimized ¾″ MDF with internal bracing, chamfered curved front baffle (time-aligned)

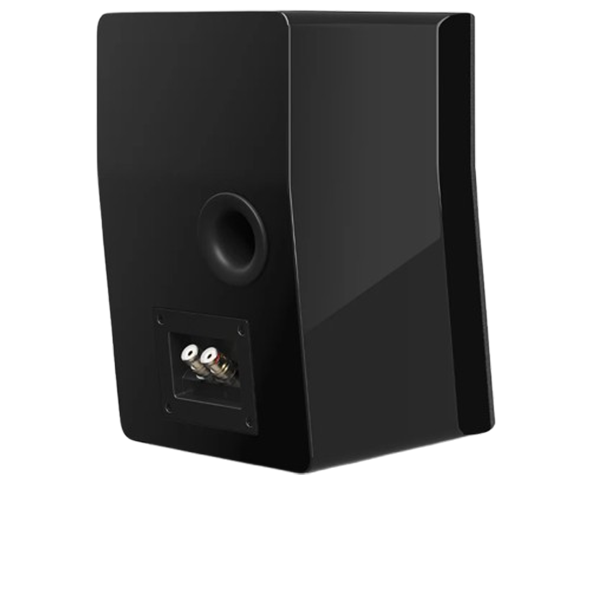

Rear-firing 1.6″ wide-flared bass-reflex port
12.2″ H × 7.48″ W × 9.21″ D (310 × 190 × 223.9 mm)
12.36″ H × 7.48″ W × 9.57″ D (314 × 190 × 243 mm)
13.5 lb (6.1 kg)
Gold-plated 5-way (bare wire, pins, spades, bananas)
Piano Gloss Black
Magnetic cloth grille, elastomer bumper feet, owner’s manual
The Culmination of Sonic Obsession.
SVS Ultra Evolution Nano represents the culmination of SVS breakthroughs in driver design, component materials, and cabinet architecture, married with a relentless passion for audio excellence. The science of sonic perfection in harmony with a love of convincing and immersive sound.

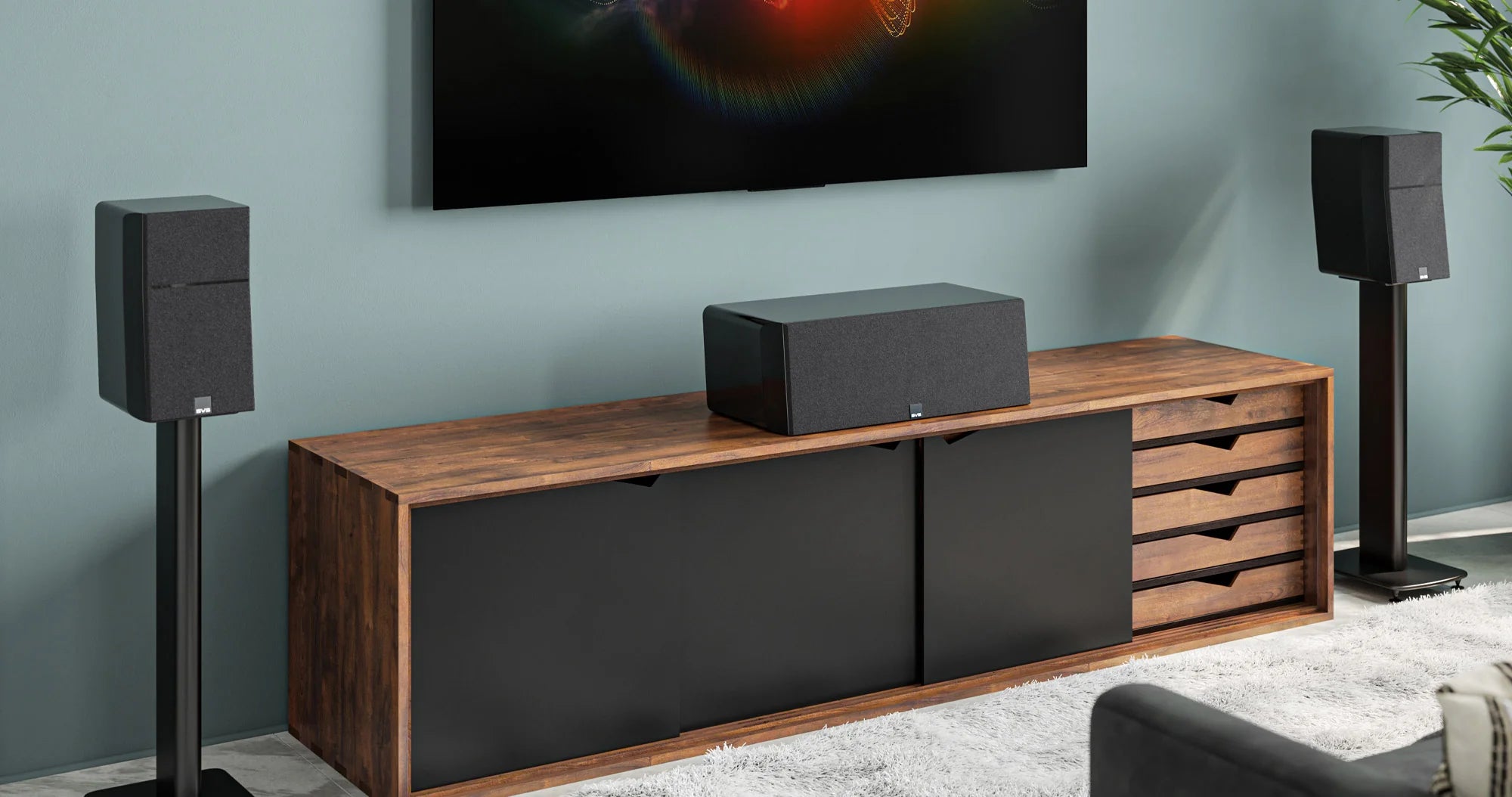

Capable of highly engaging and detailed sound with bold dynamics and bass you would expect from a much larger speaker, Ultra Evolution Nano delivers audiophile sound and versatile placement options. Perfect as a stereo pair in a small to medium sized room or as front LCR or surround speaker in a home theater.
Never has this fusion of design elements existed in a single speaker. Time aligned cabinet geometry, diamond coated aluminum dome tweeters, organic cellular lattice diffuser, and other advancements embody an uncompromising approach to speaker design.
These innovations are brought to life with painstaking anechoic and real-world measurement and voicing. This final bit of artistry places Ultra Evolution Nano among the highest fidelity compact speakers ever created.
Our mission has always been to ignite a passion for transcendent music and home theater experiences by rendering the truest sonic playback.
The joy of pristine clarity, absolute transparency, stunning dynamics, and effortless bass for more people than ever. SVS Ultra Evolution Nano deeply connects you to the emotion of sound.
