High Quality phono preamplifier for connecting of a turntable to a usual line input. For the low-noise transmission of the sound signal only selected parts are used. Very complex is also the external power supply which minimizes all influences from outside.
Vincent PHO-300
Vincent PHO-300
Sale price
Rs. 50,000.00
Regular price (/)
Vincent PHO-300 Phono Preamplifier

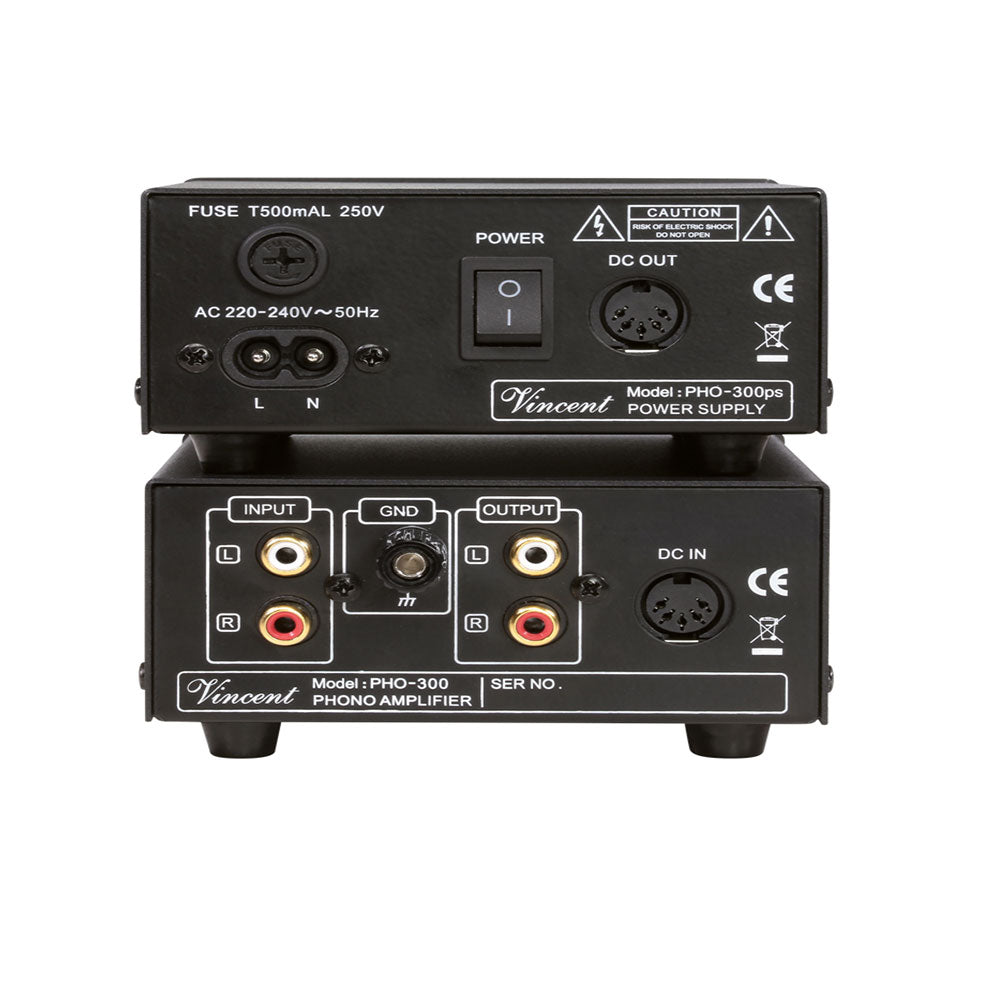

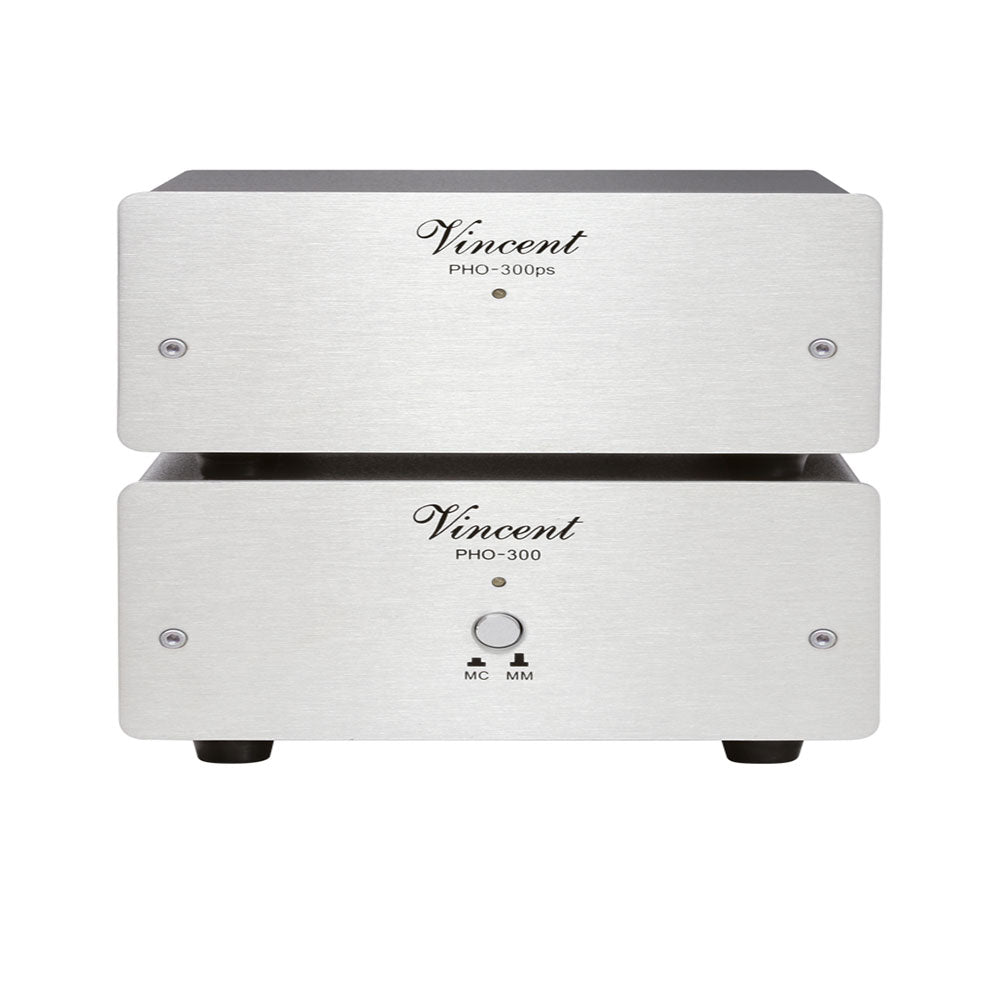

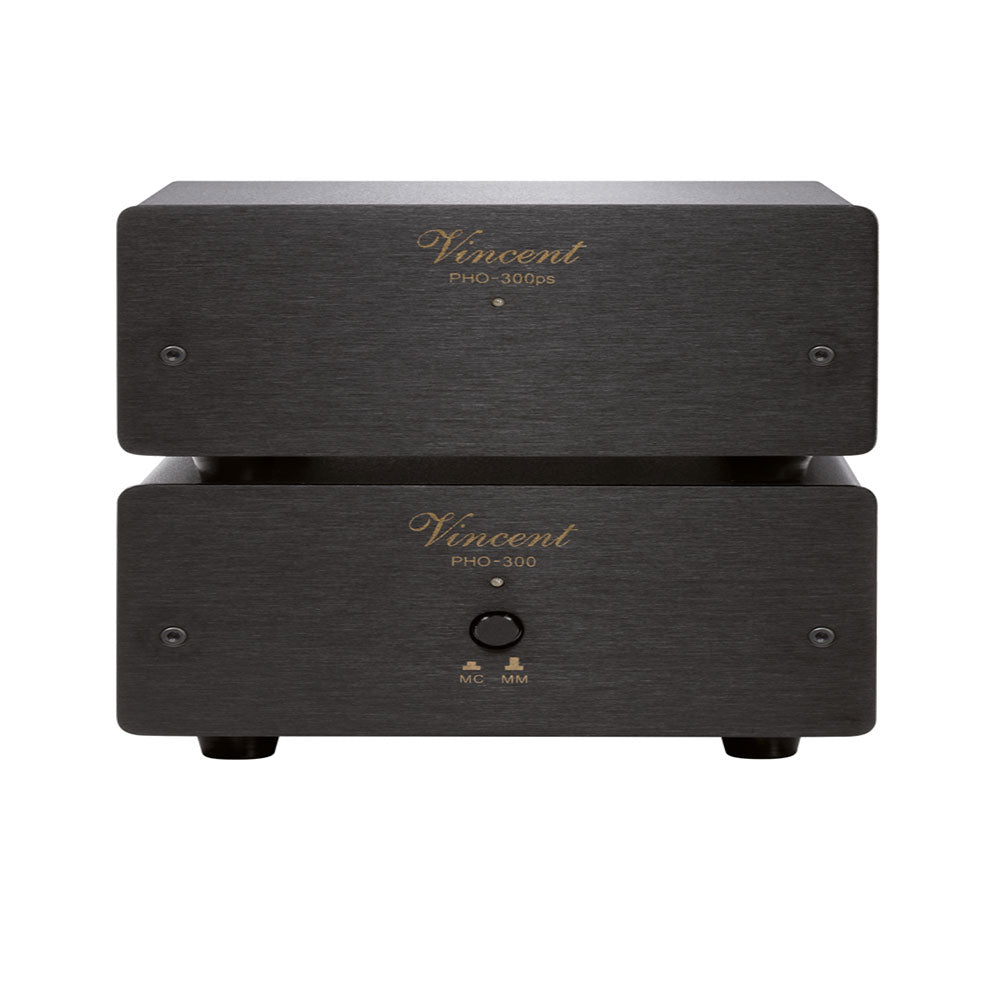

Surprisingly, for such an affordable item, the PHO-300 is a two-box design. Rather than opt for the usual switch-mode ‘wall-wart’ PSU on the end of a lead, the second box contains a custom-made linear power supply. This includes Vincent’s own mains transformer and discrete regulator circuits with 4,400µF of capacitance.
Frequency Response
10 Hz - 20 kHz (+/- 0,5dB); 10kHz - 50kHz (+/-2dB)
T.H.D.
< 0,05%
Input Sensitivity: MM
58 mV, MC: 6,8 mV
Signal-Noise-Ratio: MM
> 83 dB, MC: > 70 dB
Amplification factor: MM
47 kOhm, MC: 100 Ohm
Output Impedance
250 Ohm
Amplification Factor: MM
40 dB, MC: 60 dB
Eingangskapazität
300 pF
Inputs
1 x Stereo RCA,1 x 5pol DIN (DC IN PHO-300)
Outputs
1 x Stereo RCA, 1 x 5pol DIN (DC OUT PHO-300ps)
Max Power Consumption
10 Watt
Weight
0.9 kg (PHO-300ps), 0.6 kg (PHO-300)
Colour
Schwarz oder Silber
Dimensions (W x H x D)
112 x 60 x 126 mm (2x)
