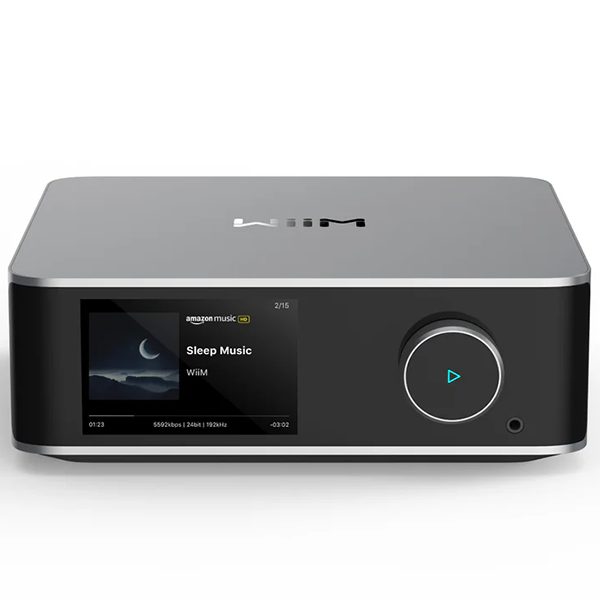

WiiM Ultra
The WiiM Ultra Music Streamer is a versatile and affordable high-fidelity streaming device that combines advanced digital-to-analog conversion, comprehensive connectivity options, and user-friendly controls. Designed for audiophiles and casual listeners alike, it serves as a central hub for modern digital audio setups.
WiiM Ultra Network Streamer
- 32-bit/384kHz ESS ES9038 Q2M SABRE DAC for high-quality audio
- THD+N of -116dB and SNR of 121dB for clear sound
- RCA, Optical, Coaxial, USB, and HDMI ARC outputs
- RCA, Phono, and Optical inputs for versatile connectivity
- Supports up to 24-bit/192kHz high-resolution streaming
- Compatible with Spotify, Amazon Music, TIDAL, Qobuz
8.3" x 7.87" x 2.83" (211 mm x 200 mm x 72 mm)
(3.13 lbs) 1.42 kg
100-240V AC input, 50/60 Hz, 0.5A Max
Glass-covered 3.5" vibrant touchscreen display
Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings
Guides users through the OOBE and OTA
Provides feedback when there's a change in the play mode
LCD Touchscreen: 3.5-inch display for playback control and settings Volume Knob: Adjusts volume and functions as a play/pause button
LED Indicator: 4-color RGBW LED indicates device status
4 Color RGBW LED indicates the device status
Analog Inputs:
Line-In (RCA): Connects to external audio sources like CD players or PCs
Phono Input: Dedicated input for turntables without a built-in preamp
Digital Inputs:
Optical (TOSLINK):Supports 2-channel PCM stereo up to 24-bit/192kHz
HDMI ARC:Receives audio from TVs; supports PCM and Dolby Digital 5.1 formats
Wireless Connectivity:
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote
Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
USB Port: For connecting USB storage devices (formatted in FAT32, NTFS, or EXT4)
Analog Inputs:
Line-Out (RCA):Maximum output of 2.1V RMS
Headphone Out:3.5mm jack for connecting headphones
Digital Inputs:
Optical (TOSLINK): Supports up to 24-bit/192kHz
Coaxial (S/PDIF): Supports up to 24-bit/192kHz
USB Audio Out: Supports up to 24-bit/192kHz; UAC 2.0 compliant
Subwoofer Output: Dedicated output for powered subwoofers
12V Trigger Out: Allows automatic power control of connected devices
Line out：
DAC: ESS ES9038Q2M SABRE DAC
Analog Output SNR: 121 dB (A-weighted)
THD+N (Analog Out):- 115 dB (0.00018%)
Supported Audio Formats: AAC, ALAC, FLAC, MP3, WAV, WMA, and more
Maximum Sampling Rate: Up to 192kHz/24-bit
Headphone out：
300 ohms:SNR (119 dB), THD+N (-99 dB)
32 ohms:SNR (119 dB), THD+N (-92 dB)
24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ
Access personal media library and use it as a media server for other WiiM and DLNA devices,
Support FAT32, NTFS, and EXT4 file systems.
Spotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready
User Guide *1
Power Cable *1
RCA Cable *1
HDMI Cable *1
Optical Cable *1
Remote Control *1
Phono Ground Adapter*1
Connect with Ease
WiiM Ultra’s comprehensive connectivity suite offers USB, Optical, Coaxial, RCA outputs, and HDMI ARC, plus multiple inputs including RCA, Phono, and Optical. It’s designed to flawlessly integrate with both digital and analog systems, enhancing any audio setup with versatility and superior sound.
Stream Everything You Love
Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.
Stream Everything You Love
Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.
Superior Sound Quality
Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.
Superior Sound Quality
Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

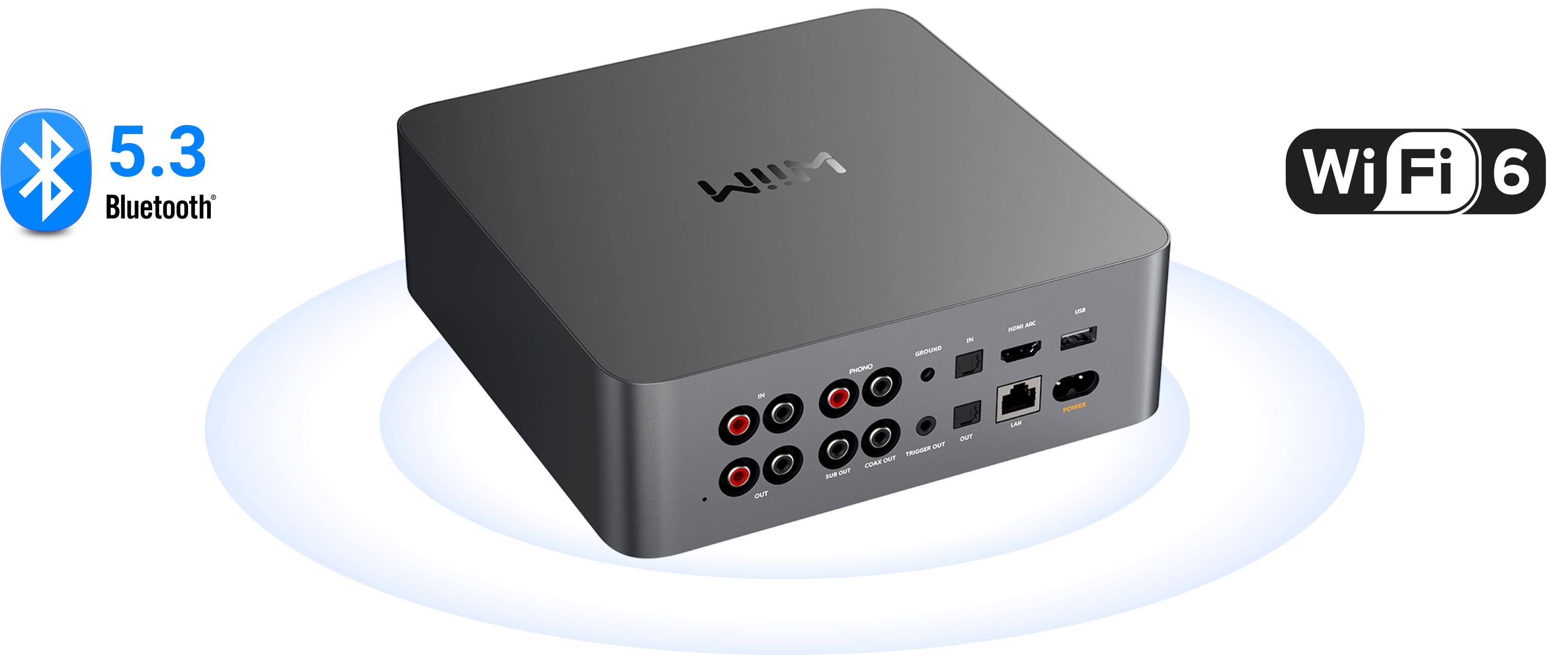

Cutting-Edge Wireless Tech
Latest Wi-Fi 6 and BT 5.3 with two antennas offering rock solid Bluetooth or Wi-Fi audio streaming

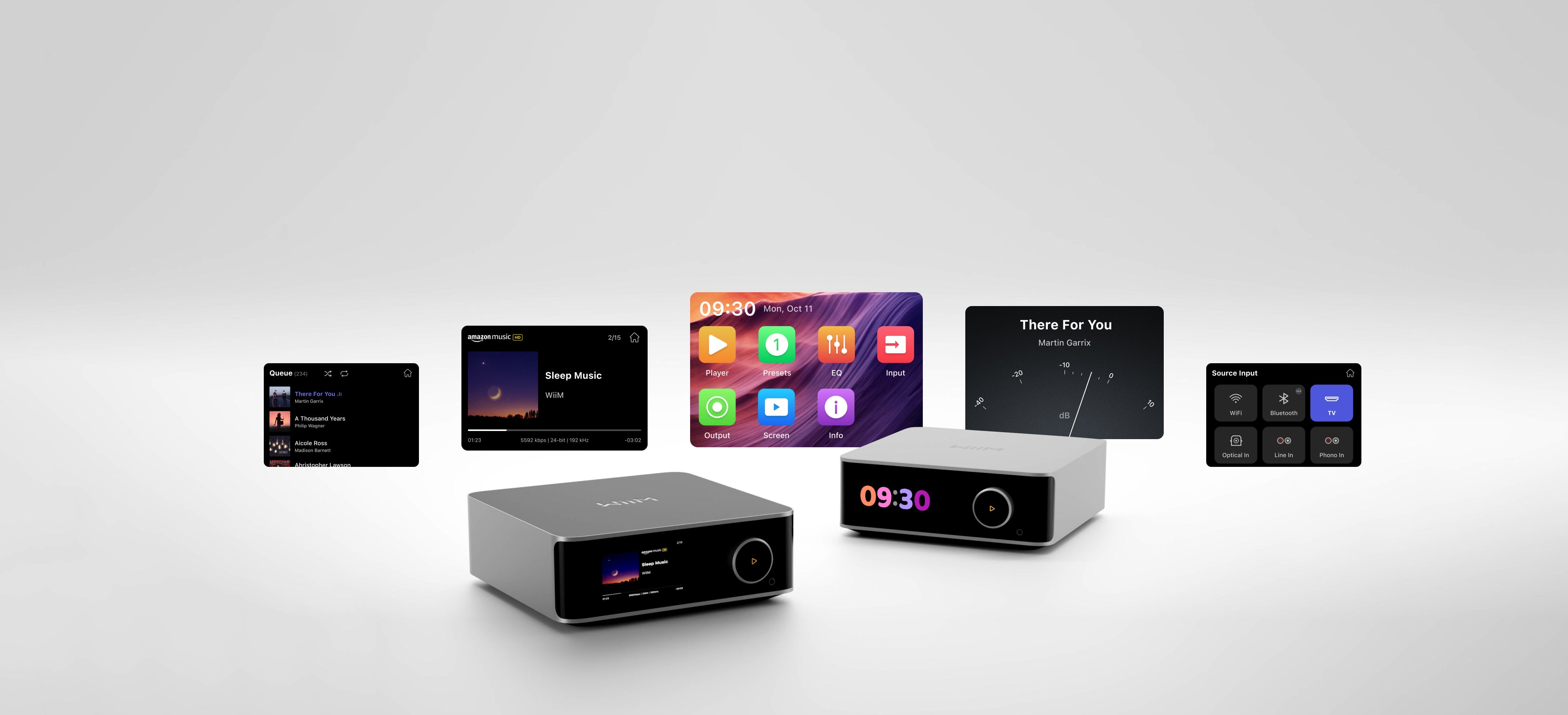

Your Music Looks Great
Features a 3.5" vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customizable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user's actions.
