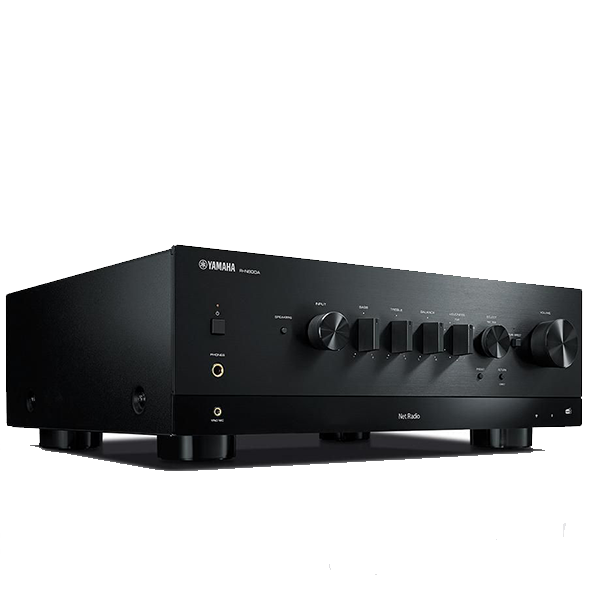

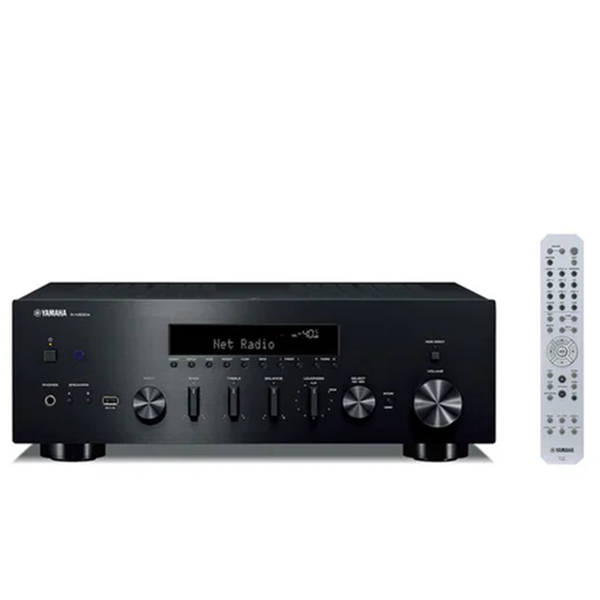

Yamaha R-N800A
The R-N800A Network Receiver delivers full-fledged, comprehensive music enjoyment with modern Hi-Fi style. It includes our original YPAO™ sound field correction technology to create an ideal listening environment right in your living room. From streaming services to high-resolution sound sources, you can immerse yourself in a wide range of music sources with superb sound quality and yet a casual style.
Yamaha R-N800A Network Receiver with Phono and Built-in DAC
- Signal-to-Noise Ratio: 100 dB (Pure Direct mode)
- Harmonic Distortion: 0.015% (50 W / 8 ohms, 20 Hz–20 kHz)
- DAC: ESS SABRE ES9080Q (384 kHz / 32-bit)
- Wireless: Wi-Fi, Bluetooth (SBC / AAC), AirPlay 2
- Wired: Ethernet, USB-B (asynchronous DAC)
- Streaming Services: Supports TIDAL, Qobuz, Spotify, Amazon Music HD, and more via MusicCast app
- File Formats Supported: MP3, WMA, AAC, WAV, FLAC, AIFF, ALAC, DSD (up to 11.2 MHz)
R-N800A
File Format: MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
Wi-Fi: Yes
Bluetooth: Yes (SBC / AAC)
AirPlay: Yes (Airplay 2)
[20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms)
140 / 170 / 220 / 290 W
10 Hz-100 kHz 0±1.0 dB, 20-20 kHｚ0±0.5 (Pure Direct ON)
100 dB (Pure Direct ON)

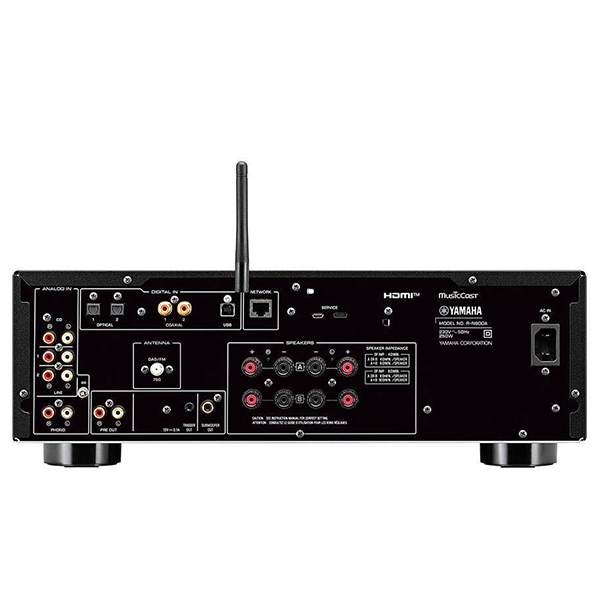

Phono, CD, line1, line2 / Pre out, Subwoofer out
Optical1, Optical2, Coaxial1, Coaxial2
No
Yes
USB DAC (USB B-type)
Yes
Yes
Yes
Yes
3 µV (20.8 dBf)
69 dB / 68 dB
Yes
Yes
0.1 W (Network standby on/ Wi-Fi connection 1.8 W)
435 x 151 x 395 (with antenna up: 435 x 232 x 395)+ 17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2")
11.4 kg; 25.2 lbs

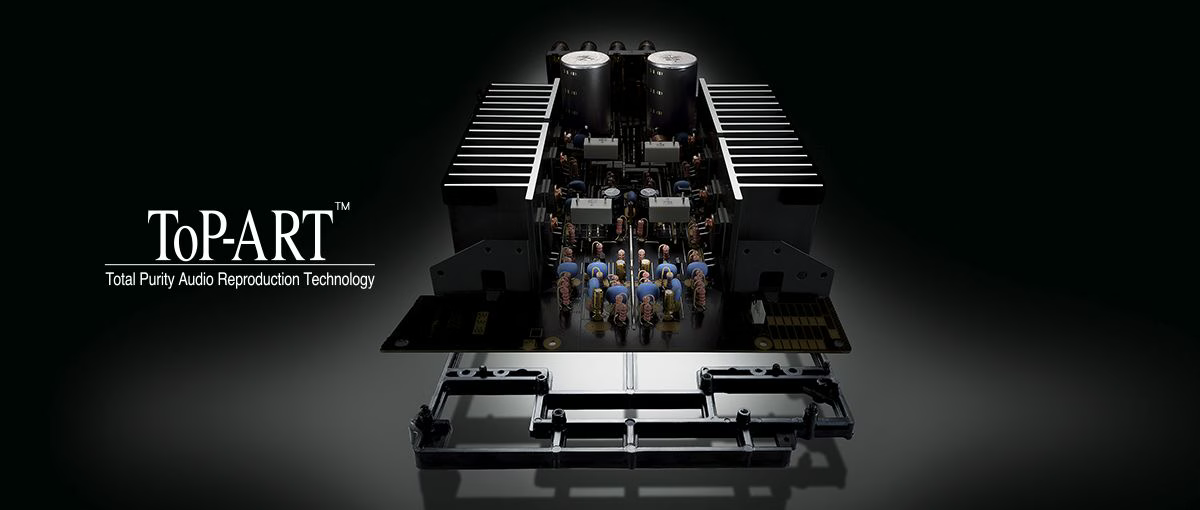

EXPERIENCE THE LEGEND, ENJOY THE MUSICALITY
As opposed to merely producing powerful sound, we pursue a sense of dynamics that express the contrast between stillness and motion in the music-allowing you to feel the intensely deep emotions in the music and immerse yourself in that musical world.

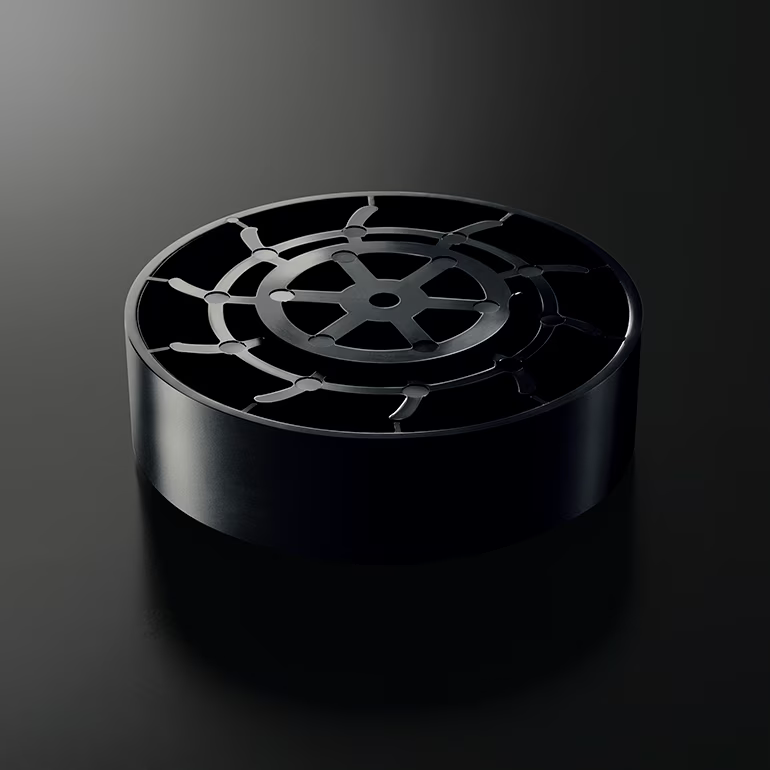

ANTI-RESONANCE FEET
The R-N800A also employs anti-resonance feet designed under a concept of vibration absorption. By arranging thin curved reinforcing bars on the outer periphery and thick straight reinforcing bars in the center, the vibration energy transmitted from the outside of the leg is effectively dispersed and diminished, while maintaining high central rigidity. These make it possible to reproduce a focused sound that lets you fully feel the rhythm and dynamics of the music.

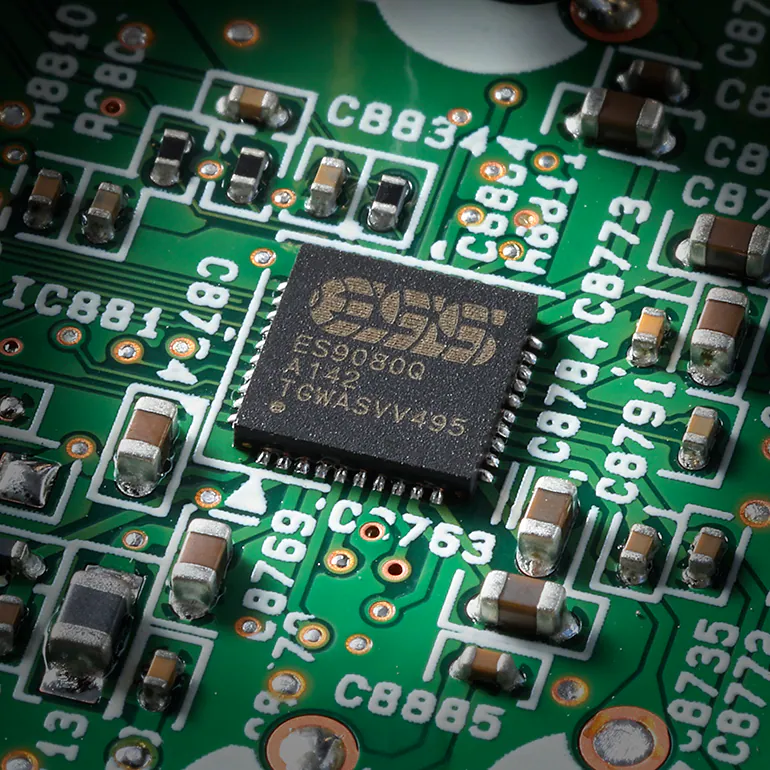

HIGH-PRECISION, HIGH-PERFORMANCE
The R-N800A uses the renowned SABRE ES9080Q 384 kHz / 32-bit DAC (from ESS Technology) to deliver superior S/N performance. Combined with Yamaha’s original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.
ENJOY YOUR RECORDS, TOO
The comprehensive connectors of the R-N800A include special phono input terminals, letting you easily connect a turntable and enjoy music from your vinyl record collection.
USB DAC FUNCTION
A stable transmission method through asynchronous transmission has been adopted. Moreover, an ultra-precision dedicated crystal clock has been installed to improve signal accuracy. It also supports DSD 11.2MHz native playback and PCM 384kHz playback, letting you enjoy exceptionally high-quality sound that takes full advantage of high-resolution audio sources.

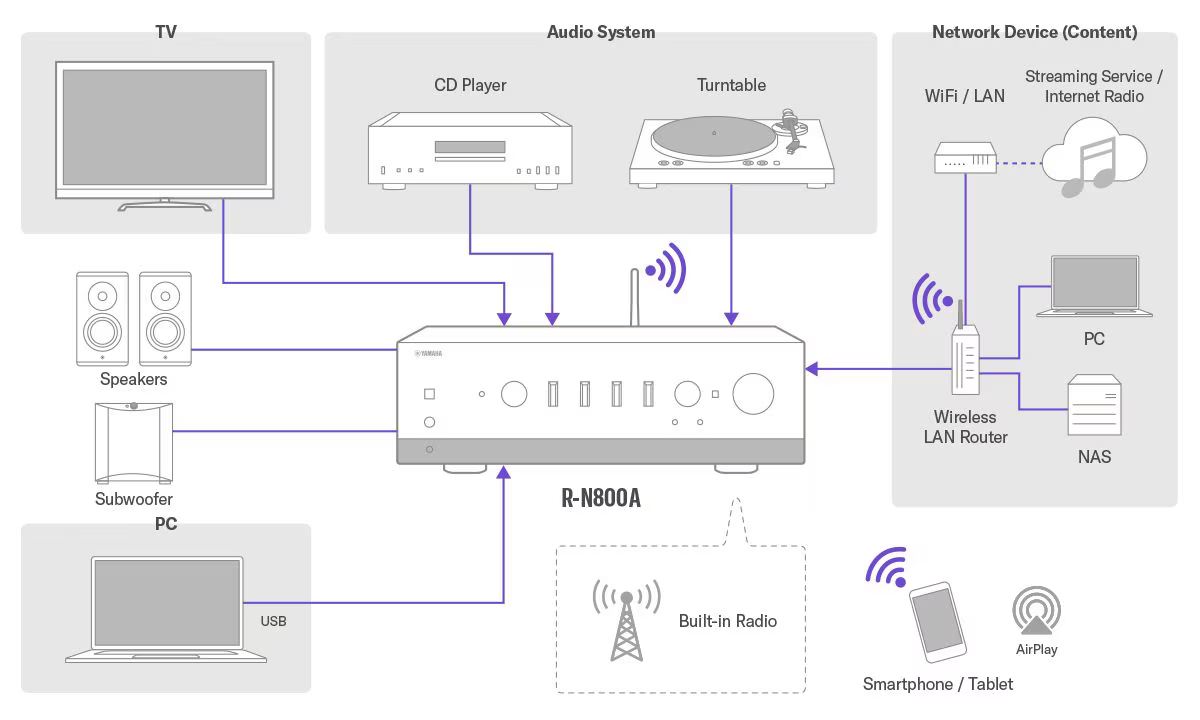

HI-FI QUALITY FOR ALL YOUR MUSIC SOURCES
From audio you’ve stored your PC or a network drive to vinyl records and TV—the R-N800A handles everything, giving you superior sound and drawing out the full sonic splendor inherent in all your entertainment.
