Bowers & Wilkins SA 1000
This new 2U rack mount Class D subwoofer amplifier is based upon ICEpower® technology and is purposely designed to drive the CT subwoofers. This Class D amplifier is incredibly powerful and stable and will allow the CT subwoofers to produce fantastic amounts of tight slamming bass.
Bowers & Wilkins SA 1000 Subwoofer Amplifier
- This is Based upon ICEpower technology.
- This is meticulously designed to drive the CT subwoofers.
- This Class D amplifier is amazingly powerful and stable.
- It allows for up to two of the same subwoofers to be driven simultaneously.
Front panel:
Rotary volume (line in)
Rotary low-pass filter frequency (4th-order Linkwitz,
40Hz - 140Hz)
Low-pass filter defeat 2-posn switch
Phase 0º/180º 2-position switch
Bass extension 3-position switch
Movie/music EQ 2-position switch
On/auto/standby 3-position switch
Status LED
Fault LED

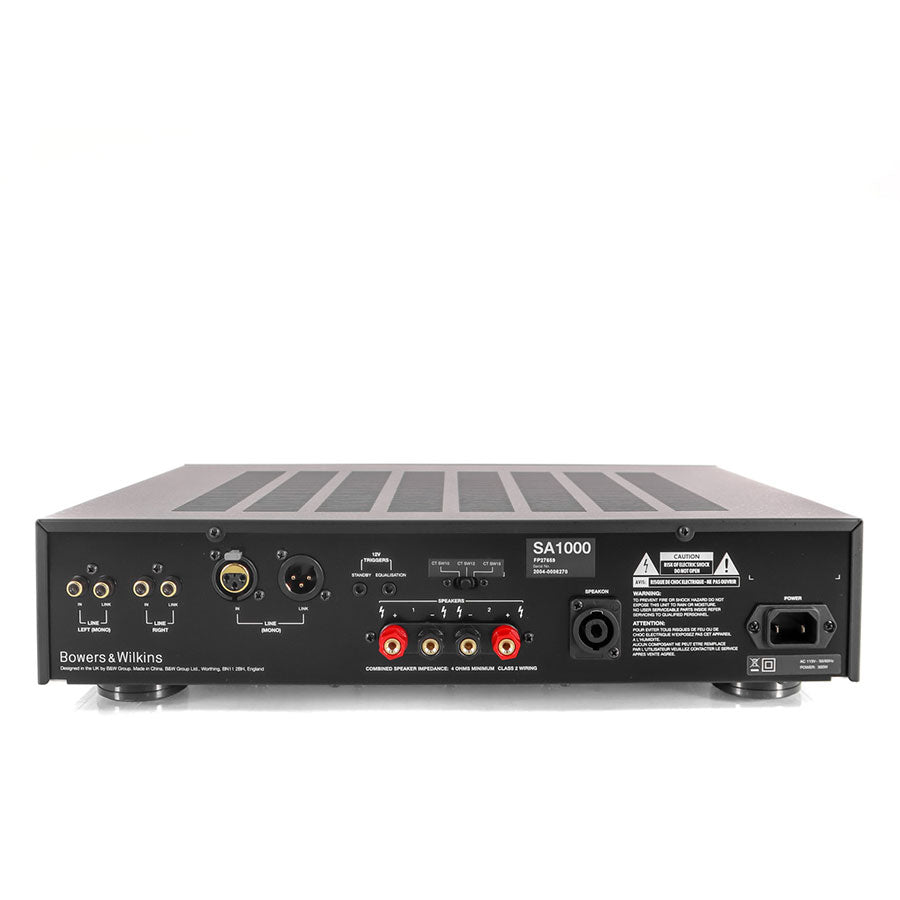

Rear panel:
Model select 3-position switch (CT SW10/CT SW 12/
CT SW15
2x RCA Phono socket, line in
2x RCA Phono socket, link out
1x XLR socket, line in
1x XLR socket, link out
3.5mm jack - 12V trigger on/standby (overrides
manual standby setting)
3.5mm jack - 12V trigger equalisation movie/music
1x Neutrik® Speakon® 4-pole speaker socket
2x pairs of Binding Posts
1000 W
33kΩ
80dB
300W – 1/8 full power
34W – Idling
Height: 100mm (3.9 in) [88.5mm (3.5 in) plus feet]
Width: 430mm (16.9 in)
Depth: 322mm (12.7 in)
Front panel Height: 2U 88.1mm (3.5 in)
6.45kg (14.3 lb)
