Martin Logan Dynamo 1100X

Name: Martin Logan Dynamo 1100X
Brand: Martin Logan
Price: 201000.0 INR
Availability: InStock

Rs. 201,000.00

0.0

Dynamo 1100X features a 1,300 Watt (peak) amplifier, 12-inch audiophile grade woofer, extensive input options, optional wireless connectivity, control via a Bluetooth app, Anthem Room Correction (ARC^®), and user-configurable front- or down-firing design. Dramatic bass detail and attack, superb extension, and room-shaking output ensure a compelling music and home theater experience.

Quantity:

Martin Logan

Martin Logan Dynamo 1100X Subwoofer

MartinLogan’s Dynamo 1100X can be set in either down-firing or front-firing configurations.

At 46-pounds the Dynamo 1100X subwoofer was far heavier than the one I owned. And at 15-inches wide x 17-1/8-inches tall x 15-5/8-inches deep (down-firing) and 15-inches wide x 17-1/4-inches tall x 16-1/4-inches deep (front-firing) the 1100X it was far, far larger.

Frequency Response

22–200 Hz ±3 dB. Anechoic in LFE mode.

Impedance

RCA: 8,300 Ohms
Speaker Level: 2,000 Ohms (red to black)
XLR: 28,000 Ohms (pin 2 to 3)

Low Frequency Transducer

12” (30.5cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design.

Amplifier

650 Watts (1,300 peak)

Software

Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC

Room Correction

Anthem Room Correction (ARC)

Controls (Backplate)

Level: Min–Max
Setting Control: Local, App
Power Mode: On, Trigger, Auto

Controls (via Bluetooth)

Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)

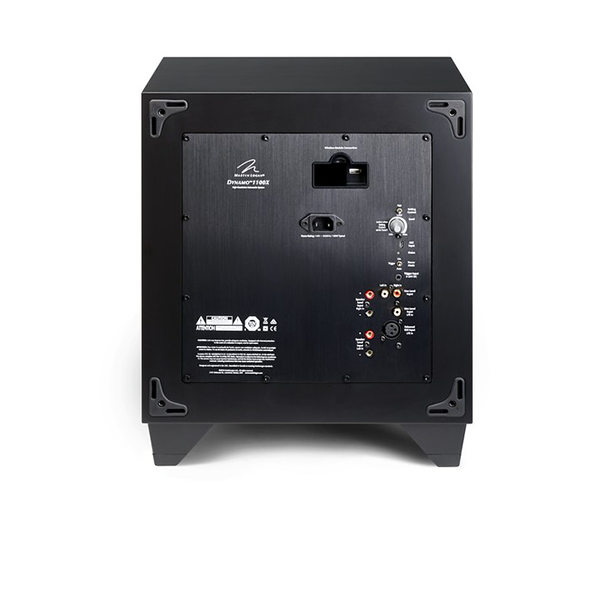

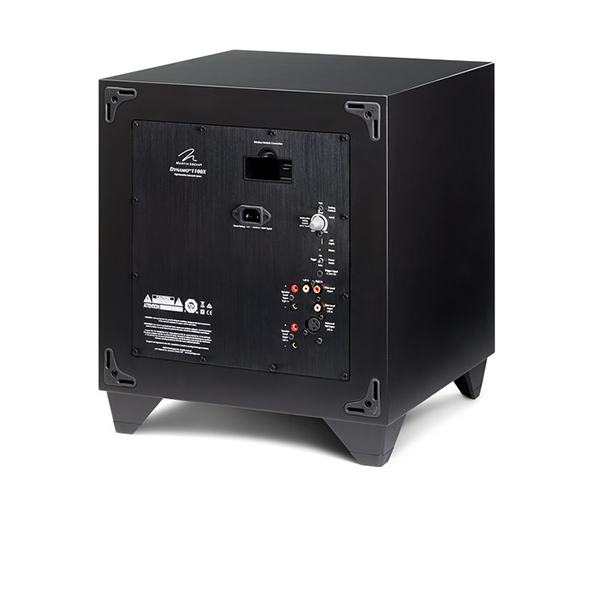

Inputs (Audio)

Line Level: Left, Right, and LFE
Speaker Level: Left and Right via banana jacks XLR: LFE

Inputs (Audio, Wireless)

SWT-X Receiver & Transmitter (sold separately)

Inputs (Other)

USB: Micro USB (for ARC/Firmware Update)
Trigger: 3.5mm, 5–24 DC

Power Draw

Typical: 100W, Max: 600W, Idle: 15W, Standby: 0.5W

Feet

Rubber, ETC (Energy Transfer Coupler) Spikes

Weight

46 lbs. (20.9 kg)

Dimensions (HxWxD), Front-Firing

17.2" x 15" x 16.2"
(43.6 cm x 38cm x 41.1cm)

Dimensions (HxWxD), Down-Firing

17.1" x 15 " x 15.6 "
(43.5 cm x 38cm x 39.6 cm)

Finish

Satin Black

Dynamo 1100XProduct Highlights

12-inch inverted surround poly cone woofer
1,300 Watts (peak) amplifier
Sealed non-resonant cabinet
Digital control system via smartphone app
Anthem Room Correction (ARC®) via smartphone app or PC
Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
Configurable front or down-firing design

Dynamo 1100XProduct Highlights

12-inch inverted surround poly cone woofer
1,300 Watts (peak) amplifier
Sealed non-resonant cabinet
Digital control system via smartphone app
Anthem Room Correction (ARC®) via smartphone app or PC
Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
Configurable front or down-firing design

UNIQUE FRONT-FIRING OR DOWN-FIRING DESIGN

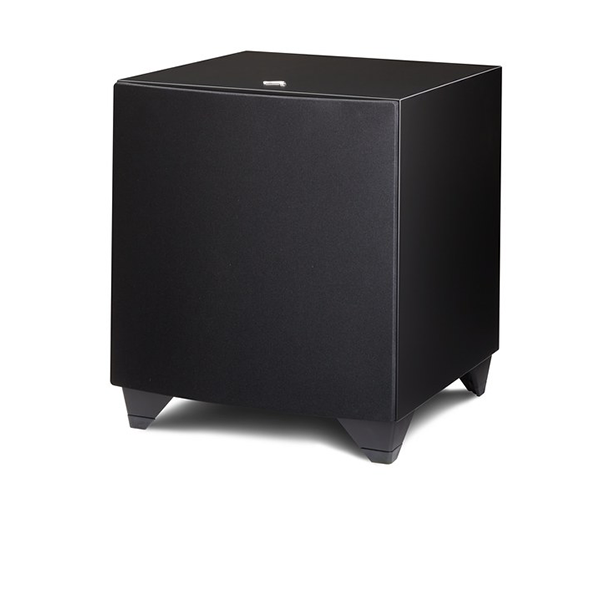

When placed in a cabinet or other discreet location, Dynamo 800X, 1100X, and 1600X subwoofers can easily convert from standard down-firing to front-firing orientation, with no tools or special skills required. A grille is provided for use in front-firing applications.

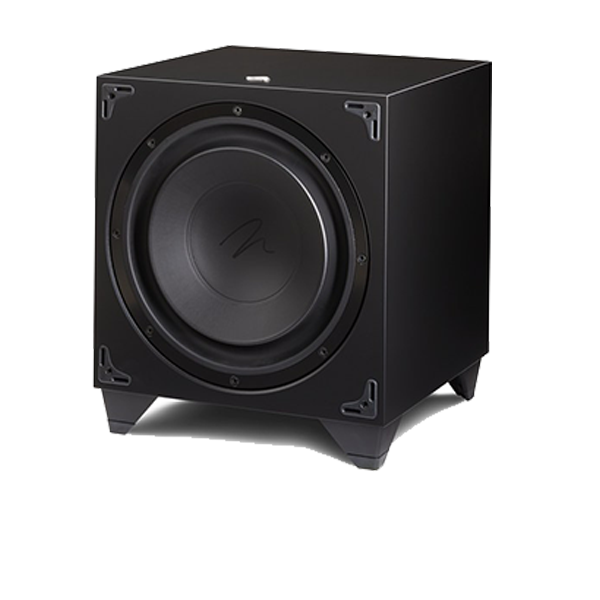

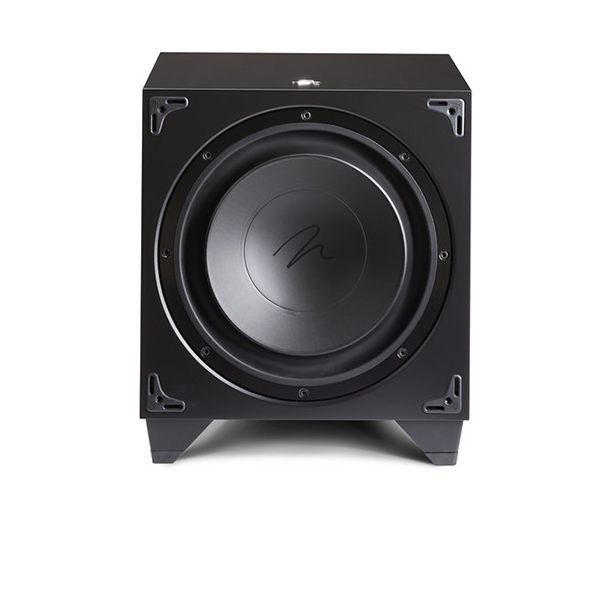

POWERFUL, HIGH-EXCURSION, LOW-TURBULENCE, INVERTED SURROUND WOOFERS

The latest generation of MartinLogan Dynamo subwoofers feature advanced-design woofers with inverted surrounds and powerful magnet, motor, and suspension designs. In front-fire mode the unique inverted surround design maximizes excursion clearance behind the grill cover. When positioned in a down-firing configuration, the inverted surround significantly reduces airflow related turbulence for an articulate and detailed low-frequency experience.

Dynamo woofers pair a high-power magnet structure (significantly more robust than previous generations) with low-mass diaphragms to provide massive excursions while perfectly preserving the tiniest bass detail. The exceptional damping properties of the cone ensure a smooth, non-resonant response necessary for truly seamless blending with high-performance loudspeakers.

Manufactured in MartinLogan’s Canadian factory, the advance-technology woofers found in Dynamo 1600X and 1100X represent the pinnacle of woofer engineering. To achieve an extremely linear response and minimize distortion, an inverted surround is overmolded onto each woofer cone to create a permanent bond while allowing extremely consistent weight distribution around all 360 degrees of the cone. Further, the stronger and more reliable bond created by overmolding technology not only maximizes power handling capabilities, but also reduces acoustically destructive edge return reflections that travel from the voice coil through the cone and to the edge of the surround. To further maximize linearity, a robust voice coil is hand wound to a tolerance of one-quarter turn to deliver consistent impedance.

Every element of Dynamo subwoofers has been meticulously designed to deliver a staggering low-frequency performance, in a compact footprint, and packed with the latest technologies – all without a hint of distortion.

ADVANCED ULTRA-EFFICIENT SWITCH MODE POWER SUPPLIES AND CLASS-D AMPLIFIERS

Dynamo subwoofer class-D amplifiers operate with extremely low levels of distortion and deliver dynamic impact with plenty of overhead. Low- noise, high-power switching power supplies produce clean power efficiently in a small space and effortlessly provide tremendous levels of current. Both feature high-quality MOSFET transistors, transformers, noise-suppression networks, and control circuitry. The switching power supply combined with reliable class-D technology means there’s virtually no energy lost in the subwoofer system.

INVERSE MATHEMATICAL EQUALIZATION (IME) FILTER

The IME filter used in the Dynamo subwoofers is derived from the inverse of the unfiltered driver response. Precision IME filtering yields extremely accurate low-frequency response—superior to that provided by the simple second-order high-Q filters typically found in subwoofers in this price range.

SEALED CABINET WITH EXTENSIVE INTERNAL BRACING

Although ports, when correctly designed, are a convenient and cost-effective way of increasing low-frequency output, when used in small cabinets their reliance on resonant energy can impair bass quality. Dynamo 800X, 1100X, and 1600X are compact, sealed subwoofer systems that minimize transient-blurring group delay while maintaining smooth, consistent response, regardless of music or movie source material. The cabinets are constructed from the finest composite material for acoustic integrity. Inside, critically placed structural cross-bracing provides a stable foundation for the woofer, while the added rigidity keeps cabinet-induced resonances and non-linearities to inaudible levels.

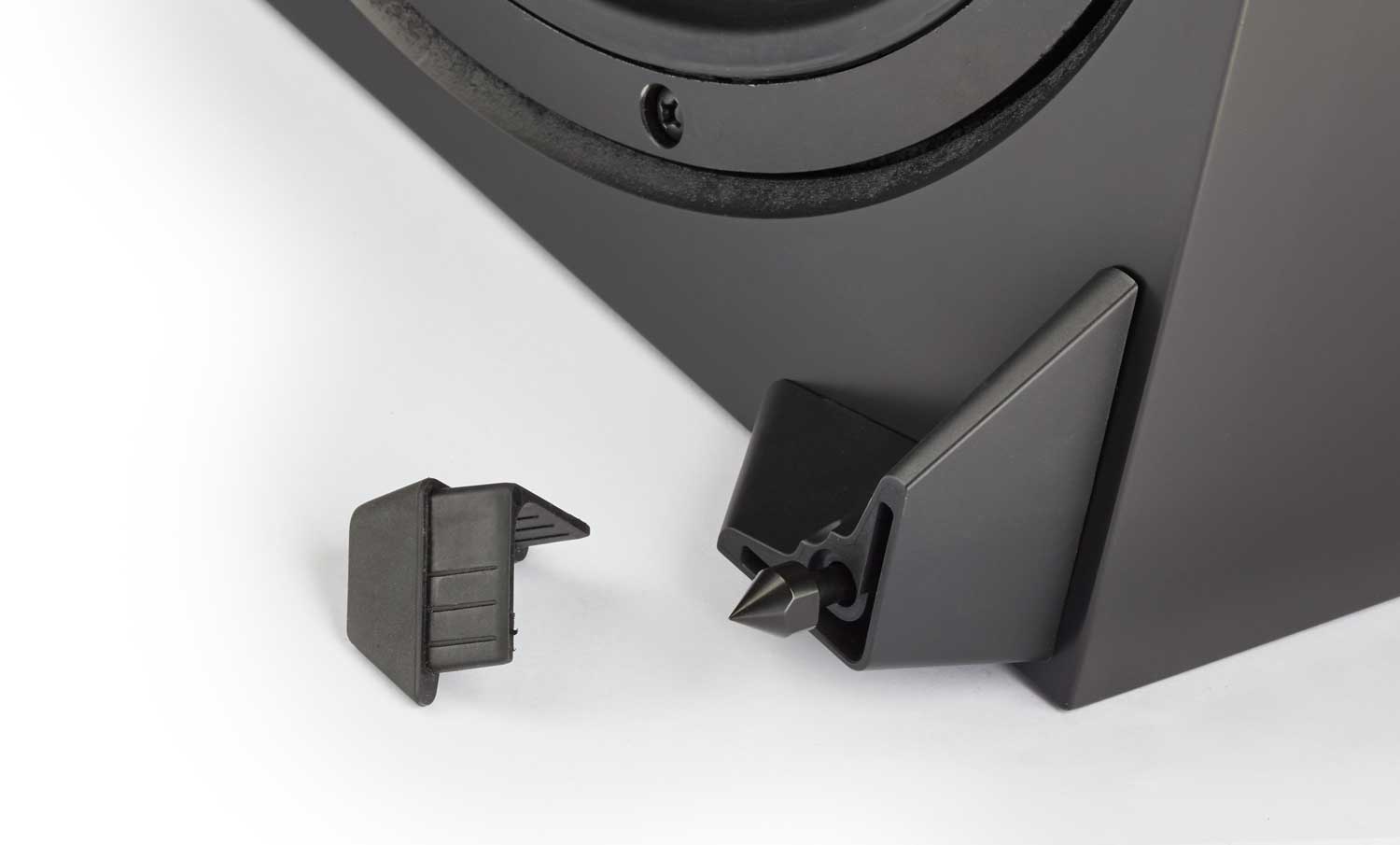

BUILT-IN ETC™ (ENERGY TRANSFER COUPLER) SPIKES

Dynamo 800X, 1100X, and 1600X come with custom ETC spikes which can be used to enhance stability on thick carpets, or create tighter coupling between subwoofer and floor to enhance overall sound quality. The built-in spikes are conveniently and discretely hidden underneath the rubber feet.
