Martin Logan Dynamo 600X
Dynamo 600X presenta un amplificatore da 240 Watt (picco), un woofer audiofilo da 10 pollici, ampie opzioni di input, connettività wireless opzionale, controllo tramite app Bluetooth e Anthem Room Correction (ARC ® ). Il dettaglio e l'attacco dei bassi drammatici, l'estensione superba e l'uscita dalla stanza assicurano un'esperienza musicale e home theater avvincente.

Martin Logan Dynamo 600X Subwoofer
- Woofer con cono in poli surround invertito da 10 pollici
- Amplificatore da 240 Watt (picco)
- Design a bassa turbolenza e porting
- Sistema di controllo digitale tramite app per smartphone
- Anthem Room Correction (ARC ®) tramite app per smartphone o PC
- Ingressi RCA e diffusori
- Ricevitore e trasmettitore wireless SWT-X (venduto separatamente)
27–200 Hz ±3 dB. Anechoic in LFE mode.
RCA: 8,300 Ohms
Speaker Level: 2,000 Ohms (red to black)

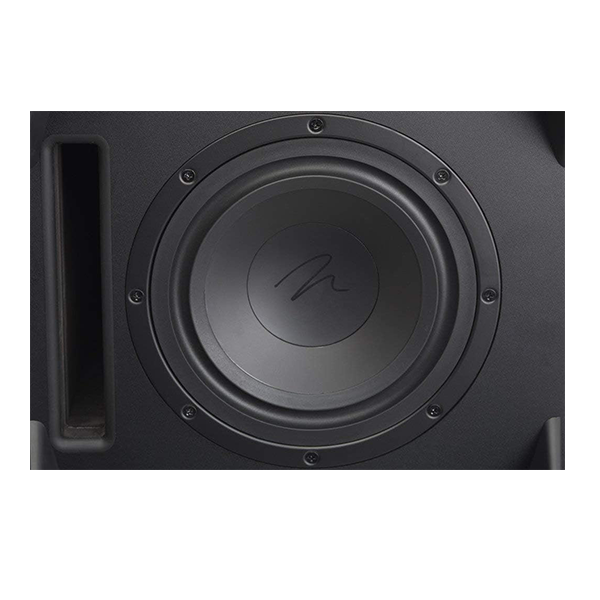

10” (25.4cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly. Ported.
120 Watts (240 peak)
Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC
Anthem Room Correction (ARC)
Level: Min–Max
Setting Control: Local, App
Power Mode: On, Auto
Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARCTM): On, Off Tone
Sweep (20–120Hz): On, Off, Pause (Frequency)

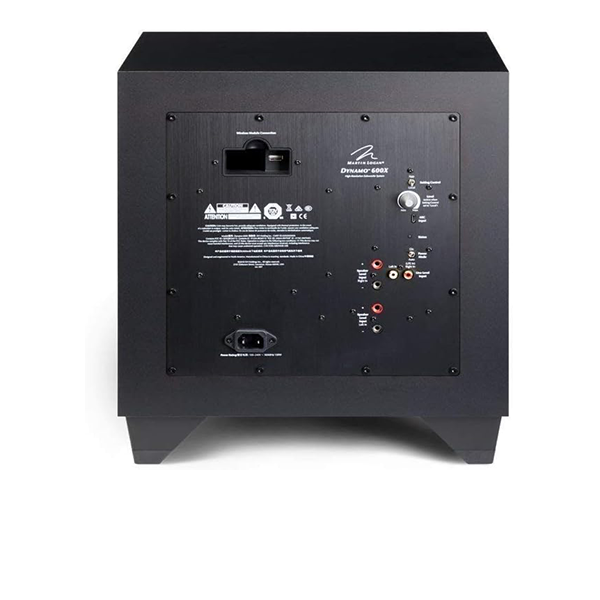

Line Level: Left, Right/LFE
Speaker Level: Left and Right via banana jacks
SWT-X Receiver & Transmitter (sold separately)
USB: Micro USB (for ARC/Firmware Update)
Typical: 30W, Max: 150W, Idle: 4W, Standby: 0.5W
Rubber, ETC (Energy Transfer Coupler) Spikes
Rubber
35.5 lbs. (16.1 kg)
16.3" x 14.5 " x 14.9 "
(41.5 cm x 36.7cm x 37.8 cm)
Satin Black
INVERSE MATHEMATICAL EQUALIZATION (IME) FILTER
The IME filter used in the Dynamo subwoofers is derived from the inverse of the unfiltered driver response. Precision IME filtering yields extremely accurate low-frequency response—superior to that provided by the simple second-order high-Q filters typically found in subwoofers in this price range.
LOW-TURBULENCE PORTS
When properly optimized and executed, ports are a convenient, cost- effective way to increase low-frequency output. Dynamo 400 and 600X feature tuned, long low-turbulence ports designed to provide superb low-end extension while minimizing port induced distortion.
