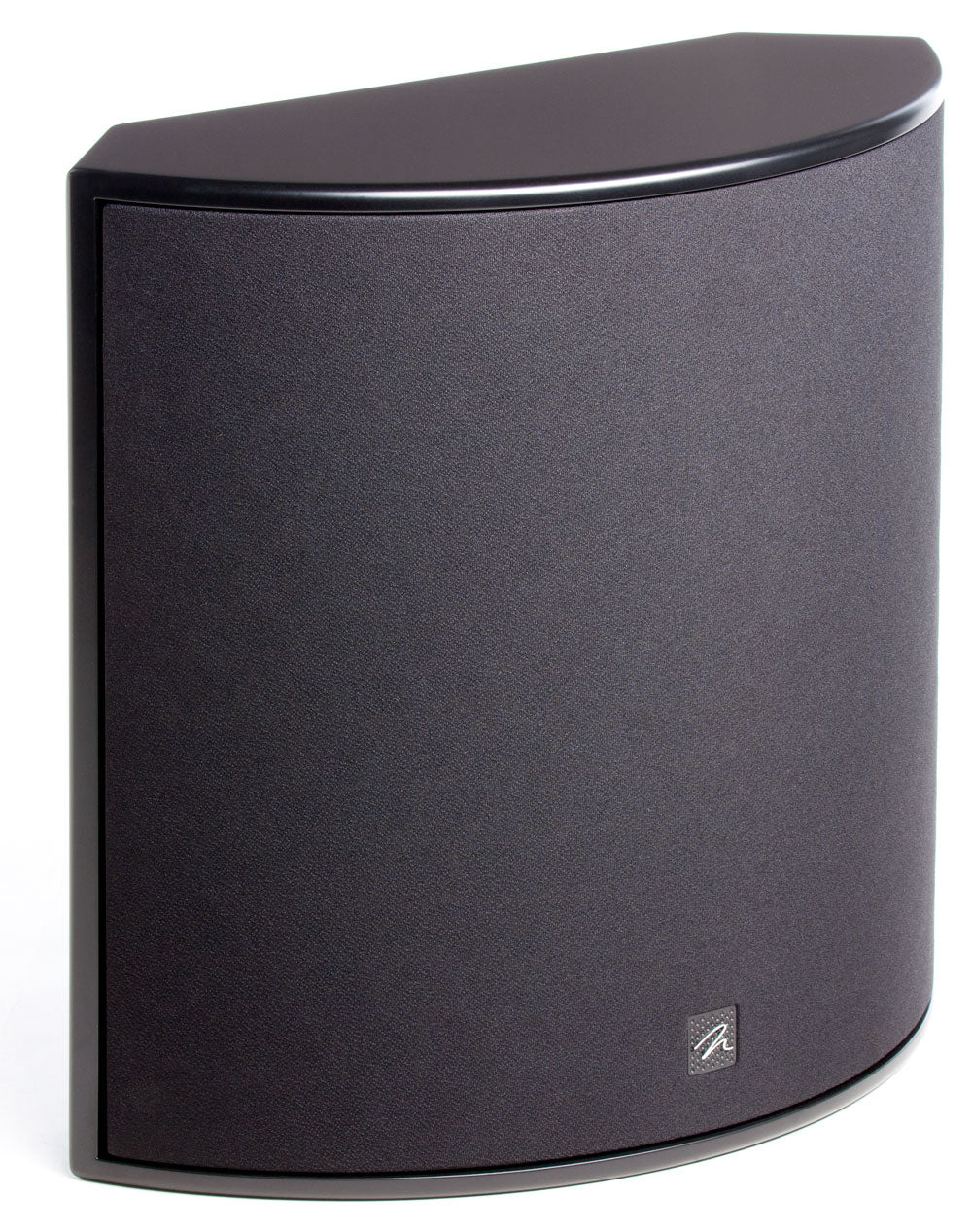

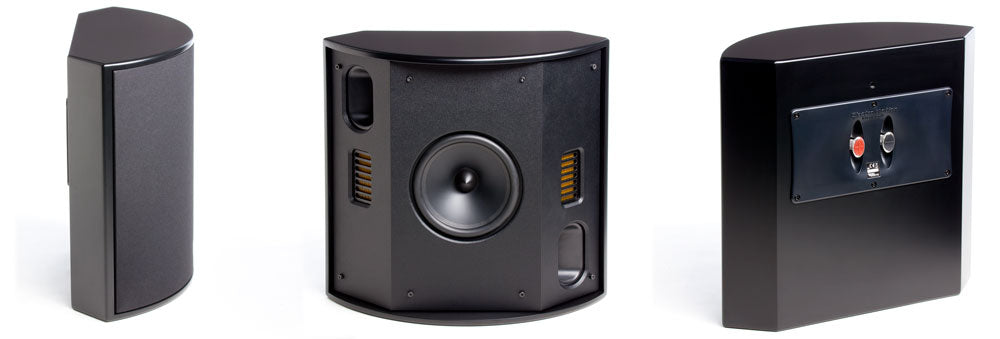

Martin Logan ElectroMotion FX2
Martin Logan ElectroMotion FX2 Surround Speaker
- Hybrid Electrostatic and Dynamic Driver Design: Combines Martin Logan’s signature electrostatic panel with dynamic woofers for detailed highs and powerful bass.
- Folded Motion Tweeter: Delivers clear, crisp high-frequency response with low distortion.
- Dual 6.5-inch Aluminum Cone Woofers: Provide deep, tight, and punchy bass performance.
- ElectroMotion XStat CLS Panel: Offers wide, transparent soundstage with extended high-frequency response.
- Bass-Reflex Ported Cabinet: Enhances low-frequency output and efficiency.
- Curved Speaker Panel Design: Improves dispersion for a broader sweet spot and immersive listening experience.
55–25,000 Hz ±3dB
20—200 watts per channel
160°
30°
93 dB @ 2.83 volts/ meter
5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
2,300Hz
Two 1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducers with 4.5" × 2.75" (11.4cm × 7cm) diaphragm
6.5" (16.5cm) paper cone with cast aluminum basket. Ported.
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.
Push style with banana jacks
16 lbs. (7.3 kg)
14.9" x 14" x 6.8 " (37.9cm x 35.5cm x 17.2cm)
Folded Motion XT Tweeter
MartinLogan's larger, low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless performance.
Slender Profile
When mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
