Q Acoustics SUB 80

Name: Q Acoustics SUB 80
Brand: Q Acoustics
Price: 68900.0 INR
Availability: InStock

Rs. 68,900.00

Smaller rooms with smaller speakers still deserve big, well-controlled bass for listening to music or watching movies. The Q SUB80 with its 8in driver is the ideal partner for M20 or M40 active speakers or 3000c and 5000 Cinema Packs in ones or twos.

Color:

Satin Black

Variant

Quantity:

Q Acoustics

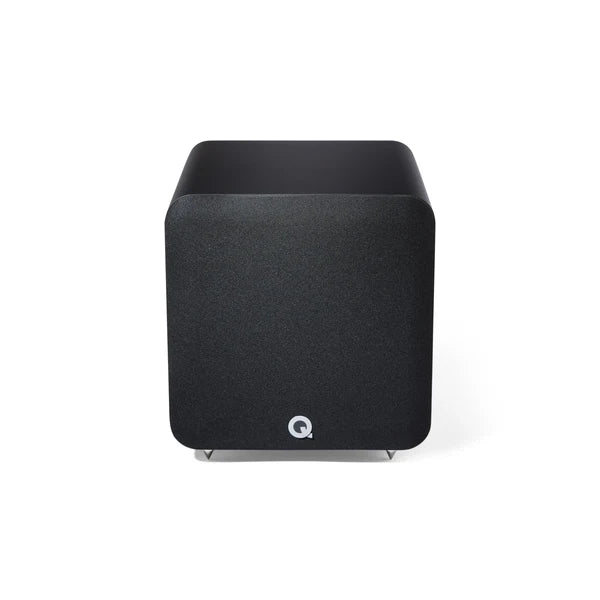

Q Acoustics SUB 80 Active Subwoofer

Q SUB80 has exceptional bass power to cabinet size ratio.
This subwoofer is more powerful than the previous QB 12 model.
Digital Signal Processing (DSP) allows easy system and room integration with optimised settings for class-leading, distortion-free performance.

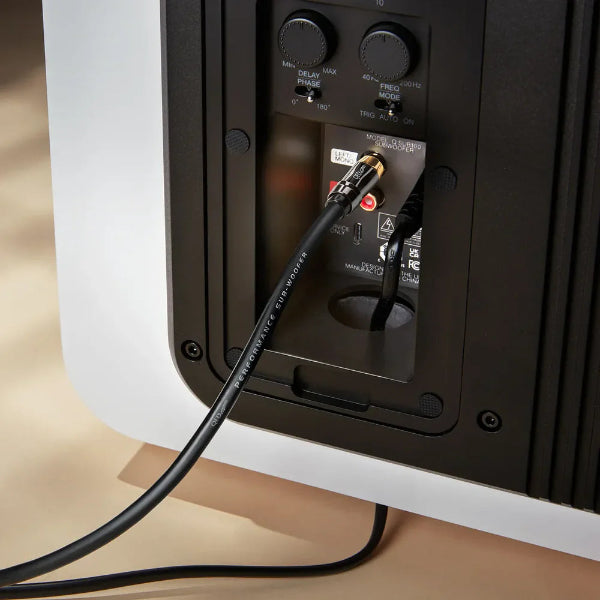

Clever dual phase and delay controls allow fine-tuning of signal alignment for flexible room placement.
DSP identifies the input signal and automatically adjusts system gain, enhancing performance regardless of the connected source.
A low-pass filter with frequency adjustment ensures seamless integration with any partnering speaker system.
A custom-designed amplifier module features four digital power amplifier stages that improve efficiency by dissipating less heat, enhance speaker control, and reduce output impedance.

Enclosure type:

Infinite Baffle

Bass Unit Diameter:

203 mm (8 Inch)

Max SPL @ 1 m :

107 Db

Peak Amplifier Power:

400 W

Dimensions (HxWxD):

315 x 315 x 347 mm

Flexible About Placement

Badly positioned subwoofers can impact sonic timing and cause phase alignment issues. But Q SUB has digital signal processing, a phase inversion switch and delay adjustment to provide superb performance and smooth integration without professional installation.

Source Detection

Subwoofers must work with input sources including stereo preamps, mono feeds from active speakers, and home cinema systems. Q SUB uses its processing power to identify the input signal type and level and automatically adjusts to deliver optimal performance.

Classic Finishes

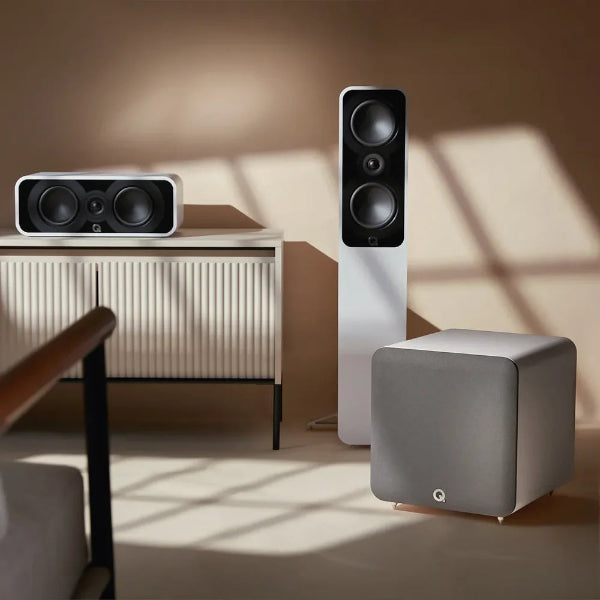

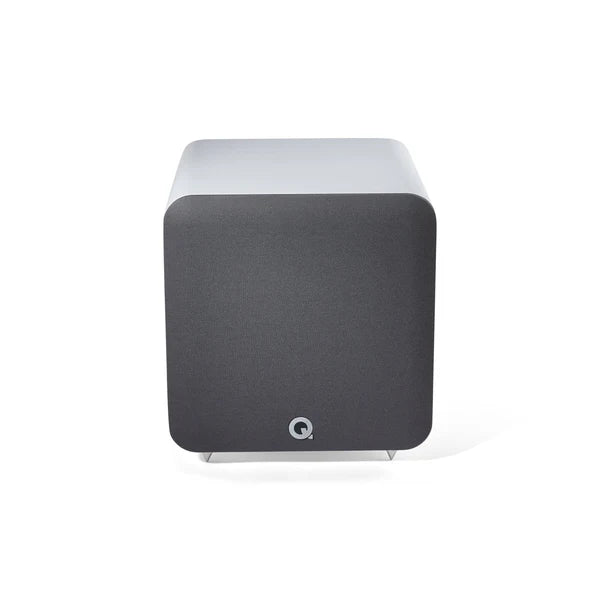

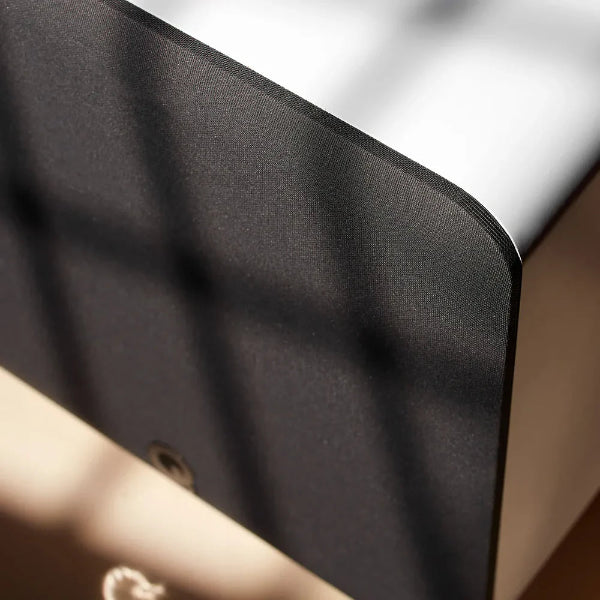

Q SUB’s minimalist clean design means it can blend discreetly into any room or proudly displayed. It arrives in two modern-yet-classic finishes: Satin Black with a black grille, or Satin White with a grey grille - joining 3060S to complete our subwoofer family.

MULTIDIMENSIONAL SOUND

OPTIONAL HEIGHT MODULE

For immersive vertical sound, add compatible Reserve R900 height modules (sold separately). These optional height modules perform beautifully with the latest home theater technologies, including: Dolby Atmos, DTS, DTS:X, DTS:X Virtual, IMAX Enhanced, and Auro-3D.

The Power to Perform

The custom-designed Q SUB amplifier module includes DSP, power amp and power supply. It has four digital power amp stages in a parallel bridge-tied load arrangement, enhancing efficiency and control by reducing output impedance and heat dissipation. This configuration can deliver up to 300 watts of continuous power and 600 watts peak, with exceptional total harmonic distortion numbers of under 0.1%.

Frequency Response Adjustment

Subwoofers need an adjustable low-pass filter to match their upper frequency response with the lowest bass of their partnering speakers. Q SUB features a low-pass filter with frequency adjustment from 40Hz to 250Hz - this wide range ensures Q SUB will seamlessly integrate with and complement the low-frequency response of any speaker system.

Rigorous Driver Design

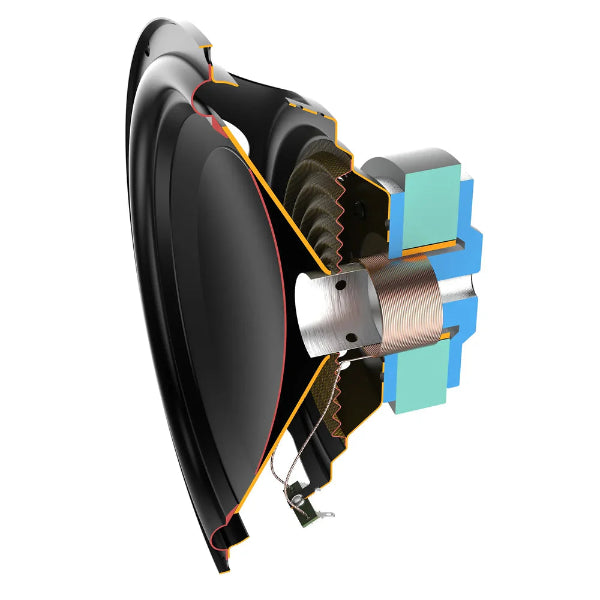

The Q SUB drive units feature a heavy-duty steel chassis, paper cone, and rubber surround. Driver diameters are 203mm for Q SUB80, 254mm for Q SUB100, and a mighty 305mm for Q SUB120. Voice coils are 38mm for SUB80 and SUB100, while SUB120 uses a 50mm version. Each has an aluminium demodulation ring for reduced inductance-induced modulation distortion.

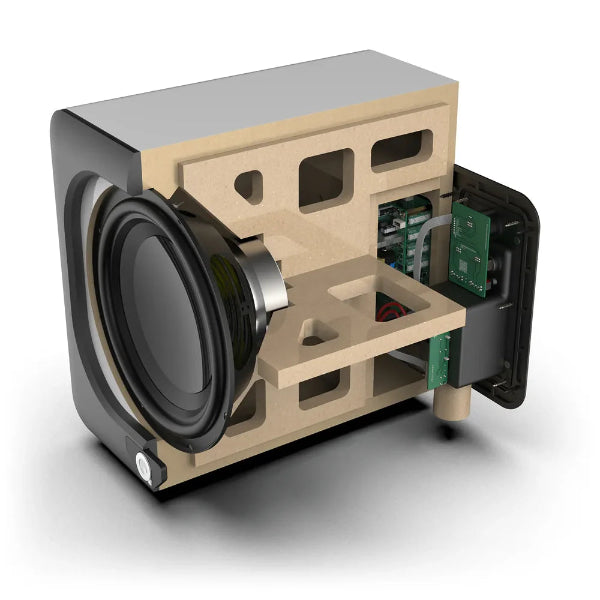

Uncompromised Cabinet Design

An infinite baffle, or sealed box, design delivers tight, focused bass especially when coupled with DSP for precise acoustic tuning, and placement near walls or furniture is easy as there’s no port. Q SUB cabinets use 18mm MDF with a 36mm baffle for rigidity, while internal dart bracing enhances stability and ensures optimal performance even under high internal pressure.
