WiiM Amp Pro

WiiM Amp Pro Networked Streaming Amplifier
- Multi-room support via Google Cast, WiiM Home, Airplay2
- Advanced ADC integration for inputs and AKM AK4493SQ DAC
- Spotify, Tidal, Alexa, Google Voice, Siri
- WiiM Room Correctio
Amp Pro 217 × 190 × 66 mm
Amp Pro 2.08 kg (4.59 lbs)
Space Gray
Aluminum
Volume knob, play/pause, and more
Status, Volume
60 Watts/channel at 8 ohms
120 Watts/channel at 4 ohms
8 ohms, 6 ohms, 4 ohms
2 pairs 8 ohms in parallel
Minimum lndepedance 2.67 ohms
Stereo PCM, Dolby Digital (DTS are not supported)

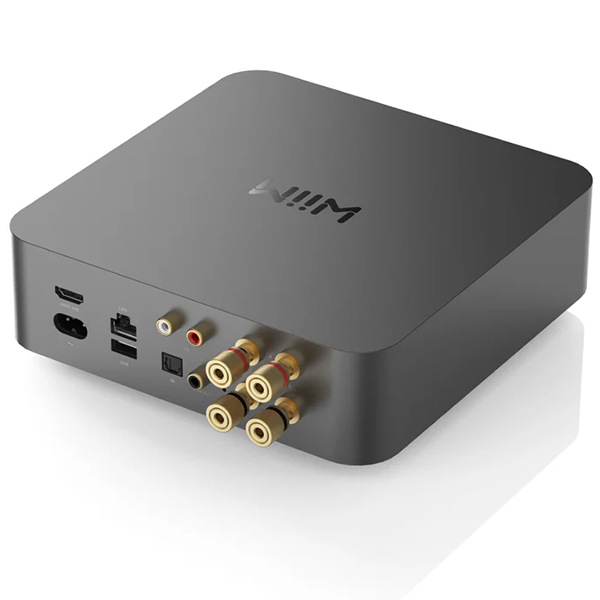

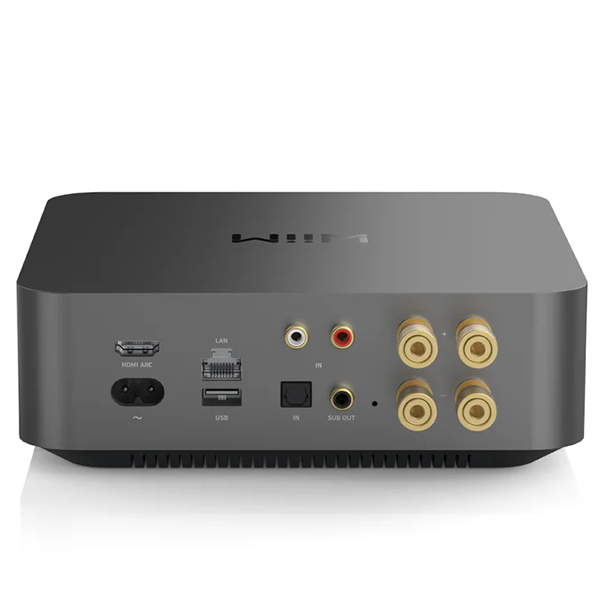

HDMI Arc, Optical, Line, USB Disk
Passive Speaker Terminal
Subwoofer Output
USB Audio Out
SNR - 120 dB
THD+N - 0.0005% (-105 dB)
MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
10-band Graphic EQ, 10-band Parametric EQ, 26 Preset EQ
Auto-detecting cable insert, user-adjustable 30-250 Hz crossover
100-240V 50/60Hz AC Power
2.4 GHz, 5 GHz, 6 GHz Triple bands, 10/100 Mbps LAN
BT 5.3,LE audio Support
A2DP Sink and Source, AVRCP
BLE HID
Google Cast, Spotify Connect,
TIDAL Connect, Alexa Cast, DLNA, Roon Ready
User Guide *1
Power Cable *1
RCA Cable *1
Optical Cable *1
HDMI Cable *1
Remote Control *1
WiiM Presents The High-Resolution Streamer & Amplifier - The Amp/ Amp Pro

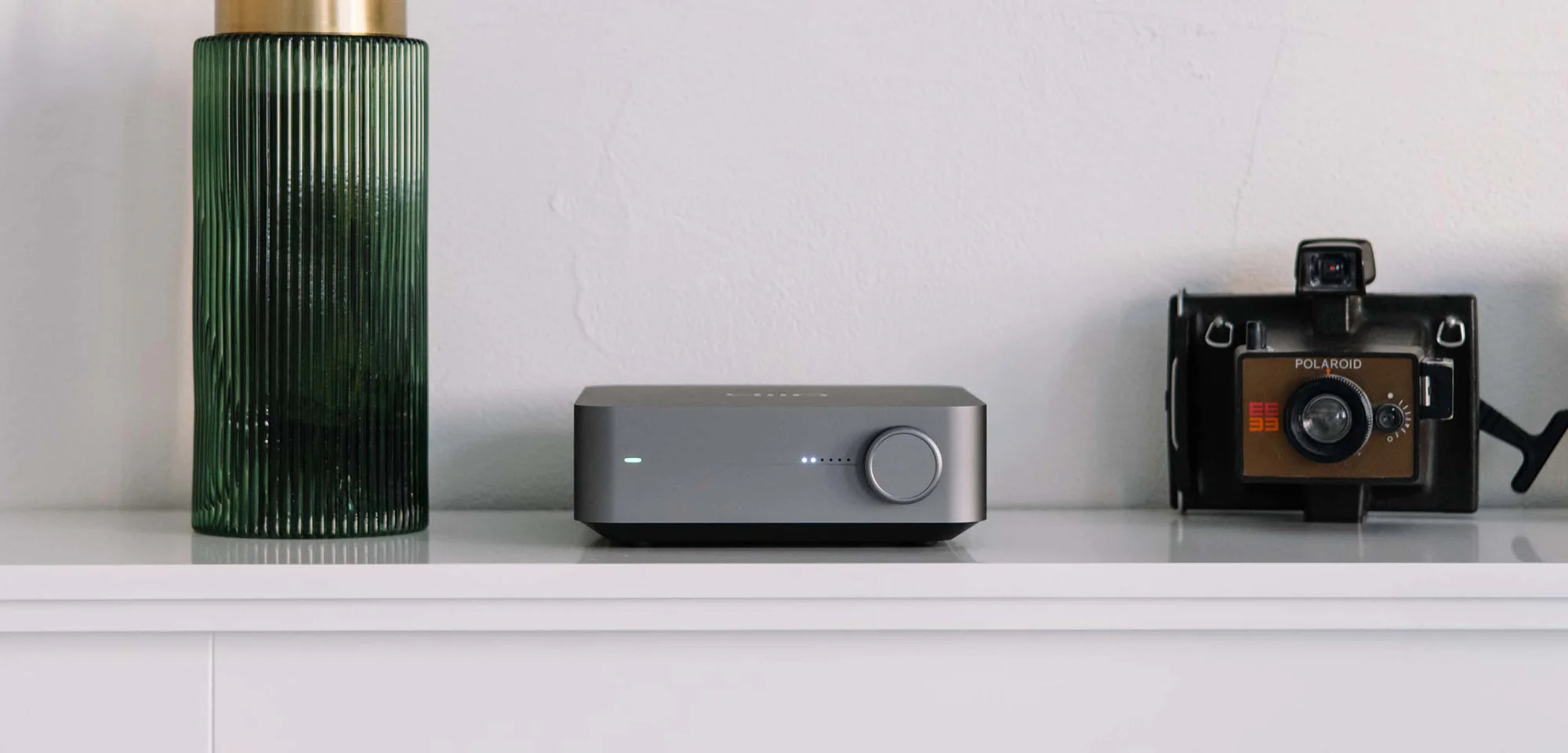

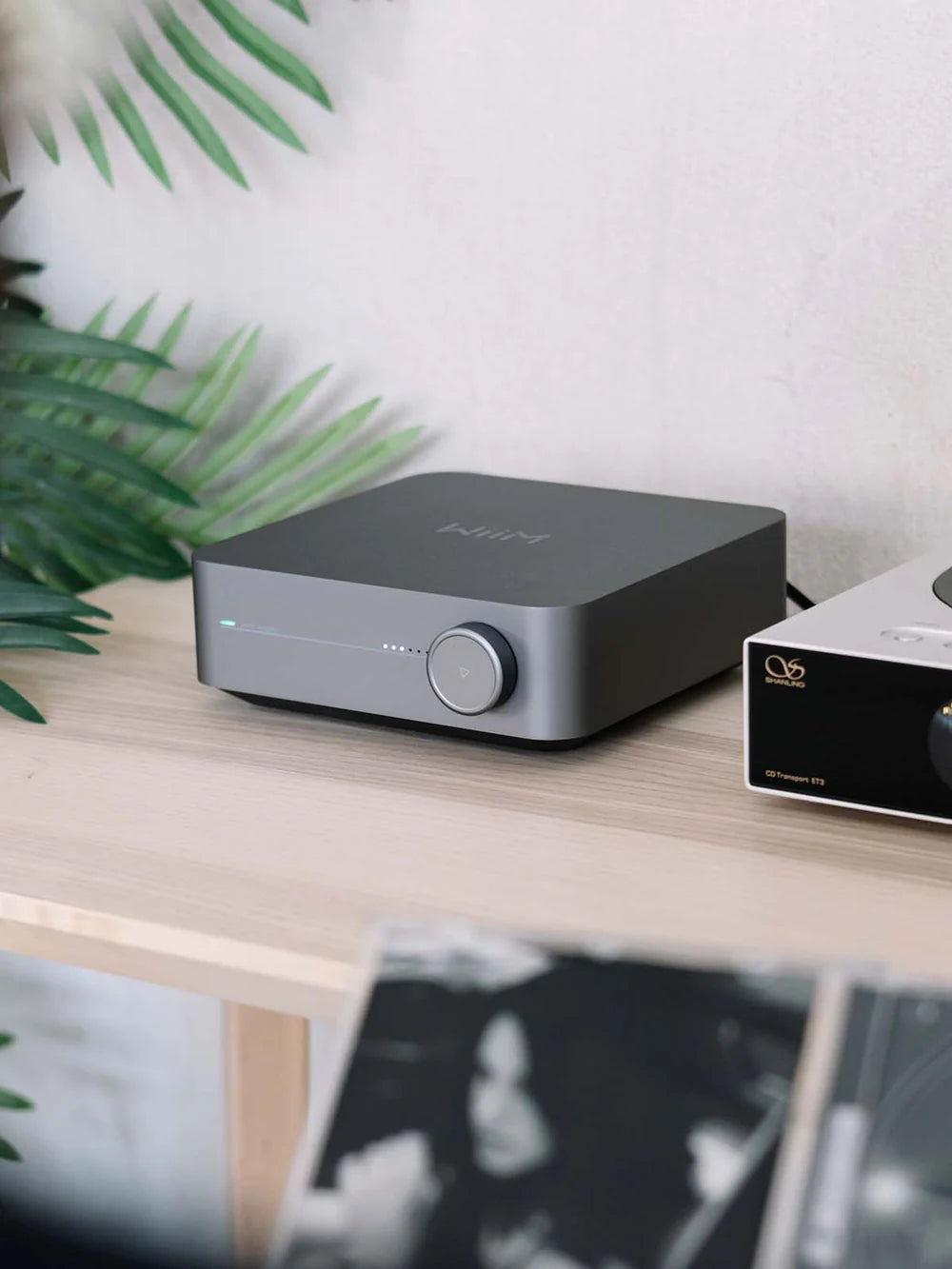

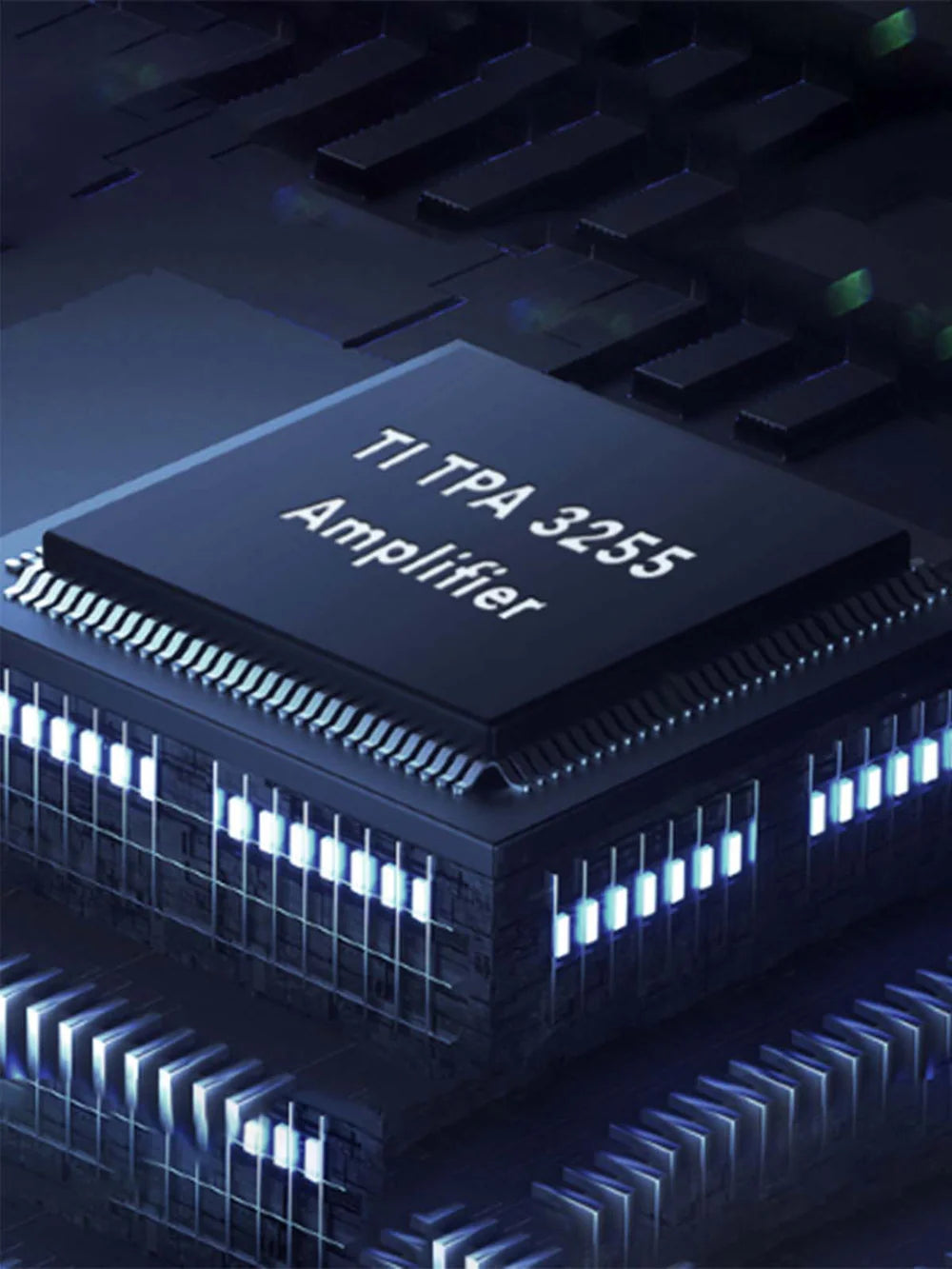

Housed in a sleek aluminum shell, the compact WiiM Amp offers versatile placement options. Inside, premium components and innovative circuitry ensure robust, crystal-clear amplification. A custom-designed heatsink ensures optimal thermal performance. Don't let its compact design fool you – it packs 60 Watts per channel at 8 ohms, and 120 Watts per channel at 4 ohms. Transform your passive speakers including floor-standing, architectural, outdoor, or bookshelf, into smart audio powerhouses.WiiM introduces a remarkable streamer and amplifier to experience premium audio, the WiiM Amp and Amp Pro. It is equipped with high-end ESS DAC chips to deliver crystal-clear sound with 192 kHz/24-bit resolution and studio-quality audio reproduction. It is powered by the TI TPA3255 amplifier to offer robust performance with refined sound quality. With advanced connectivity options like Wi-Fi 6E and Bluetooth 5.3 for seamless streaming and stable connections. Amp is available in dark grey and silver and the Amp Pro is available in dark grey. The WiiM Amp/ Amp Pro is Hi-Res Certified as it provides a remarkable music listening experience.

Equipped With a Hi-End DAC Chip From ESS For Spectacular Sound
WiiM Amp equips ESS 9018 K2M supporting ADC input of 192k/24 bit that delivers analogue output with 108 dB SNR and THD+N of -92dB (0.0025%) at 5W. WiiM Amp Pro features a high-quality ESS ES9038 Q2M DAC chip that supports ADC input of 192k/24 bit and provides analogue output with 120 dB SNR and THD+N of -105 dB (0.0005%) at 5W. The audio is produced with no gaps or overlaps for a continuous playback. These chips enhance the audio performance of the streamer as if the audio is recorded at the studio.
Equipped With a Hi-End DAC Chip From ESS For Spectacular Sound
WiiM Amp equips ESS 9018 K2M supporting ADC input of 192k/24 bit that delivers analogue output with 108 dB SNR and THD+N of -92dB (0.0025%) at 5W. WiiM Amp Pro features a high-quality ESS ES9038 Q2M DAC chip that supports ADC input of 192k/24 bit and provides analogue output with 120 dB SNR and THD+N of -105 dB (0.0005%) at 5W. The audio is produced with no gaps or overlaps for a continuous playback. These chips enhance the audio performance of the streamer as if the audio is recorded at the studio.


Features Upgraded Wifi & Bluetooth Version For Enhanced Connectivity
WiiM Amp incorporates Wi-Fi 5 and Bluetooth 5.1 and the WiiM Amp Pro features Wi-Fi 6 and Bluetooth 5.3 to ensure fast and stable wireless connectivity. It provides seamless streaming of high-resolution audio without interruptions and enables high-quality wireless audio transmission, extended range, and improved pairing with speakers or headphones.
Features Upgraded Wifi & Bluetooth Version For Enhanced Connectivity
WiiM Amp incorporates Wi-Fi 5 and Bluetooth 5.1 and the WiiM Amp Pro features Wi-Fi 6 and Bluetooth 5.3 to ensure fast and stable wireless connectivity. It provides seamless streaming of high-resolution audio without interruptions and enables high-quality wireless audio transmission, extended range, and improved pairing with speakers or headphones.


Elevate Your Home Theatre Experience & Turn Your Room Into Concert Hall
Elevate your entertainment experience effortlessly with the WiiM Amp's HDMI ARC port. Plug in your TV and immerse yourself in rich stereo sound for shows, movies, and video games. It also features a powered subwoofer output to take your audio to cinematic levels. With minimal setup required, the WiiM Amp offers a seamlessly integrated AV system that transforms your living room into a home theatre paradise. You can plug your USB disk into the WiiM Amp and transform your home into a personal concert hall. Stream your digital music collection in studio-quality to multiple WiiM devices throughout your home. The WiiM Amp not only indexes your music library but also serves as an always-on media server, making your tunes accessible anytime, anywhere in your home.
Elevate Your Home Theatre Experience & Turn Your Room Into Concert Hall
Elevate your entertainment experience effortlessly with the WiiM Amp's HDMI ARC port. Plug in your TV and immerse yourself in rich stereo sound for shows, movies, and video games. It also features a powered subwoofer output to take your audio to cinematic levels. With minimal setup required, the WiiM Amp offers a seamlessly integrated AV system that transforms your living room into a home theatre paradise. You can plug your USB disk into the WiiM Amp and transform your home into a personal concert hall. Stream your digital music collection in studio-quality to multiple WiiM devices throughout your home. The WiiM Amp not only indexes your music library but also serves as an always-on media server, making your tunes accessible anytime, anywhere in your home.

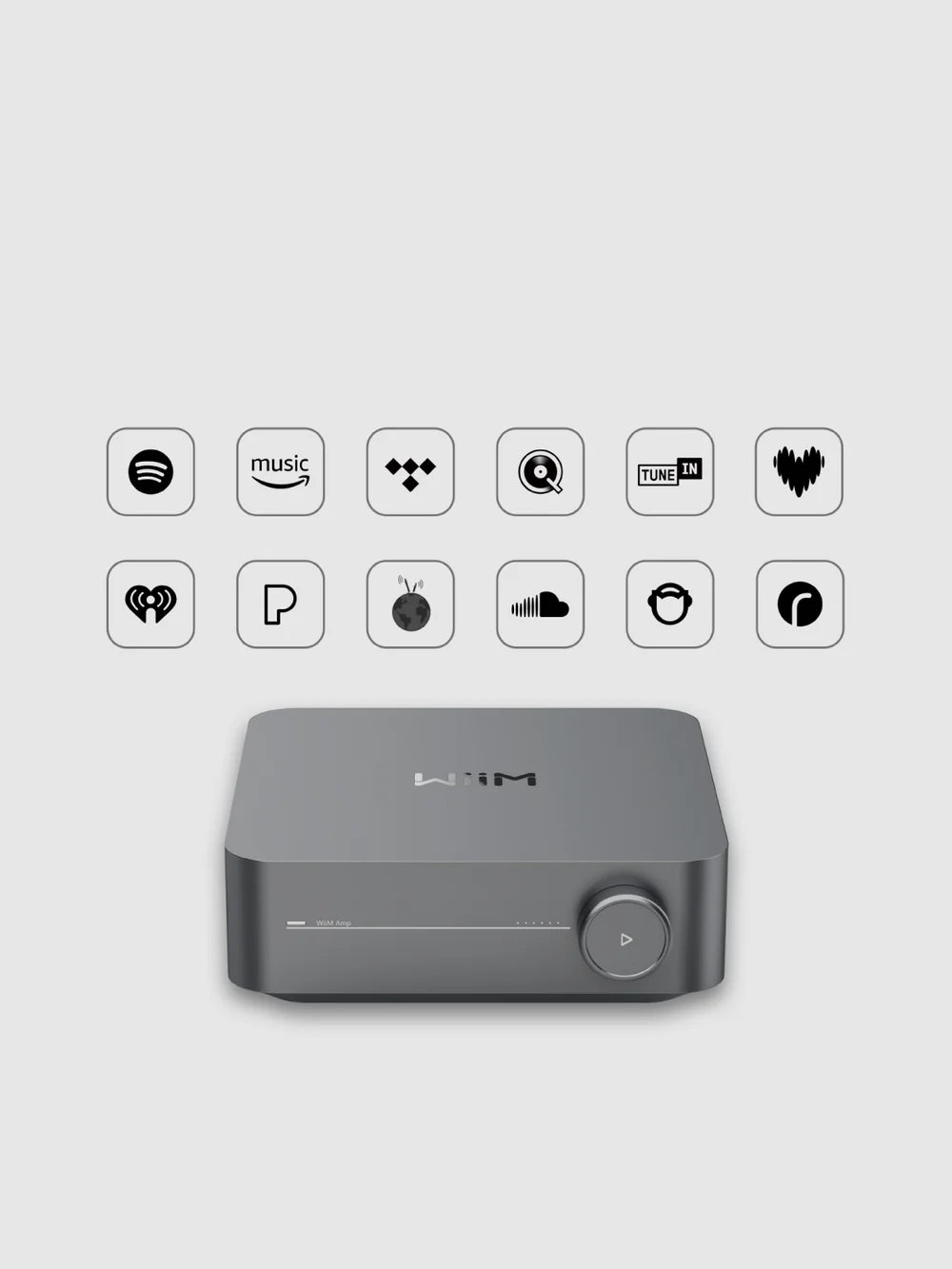

Stream Your Favourite Music Platforms With WiiM Home App
WiiM Amp/ Amp Pro is supported by the WiiM Home app to access various features and stream music in less than 2 minutes. Amp supports multiple music streaming services like Google Cast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA, Roon Ready and Amp Pro support AirPlay 2, Google Cast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA, and Roon Ready. It also allows you to adjust volume, sync speakers, save favourites, set alarms and tweak settings. You can even play directly from your music app. You can control the device with voice commands through Alexa, Google Assistant or Siri and even have Alexa multi-room with UHD.
Stream Your Favourite Music Platforms With WiiM Home App
WiiM Amp/ Amp Pro is supported by the WiiM Home app to access various features and stream music in less than 2 minutes. Amp supports multiple music streaming services like Google Cast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA, Roon Ready and Amp Pro support AirPlay 2, Google Cast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA, and Roon Ready. It also allows you to adjust volume, sync speakers, save favourites, set alarms and tweak settings. You can even play directly from your music app. You can control the device with voice commands through Alexa, Google Assistant or Siri and even have Alexa multi-room with UHD.

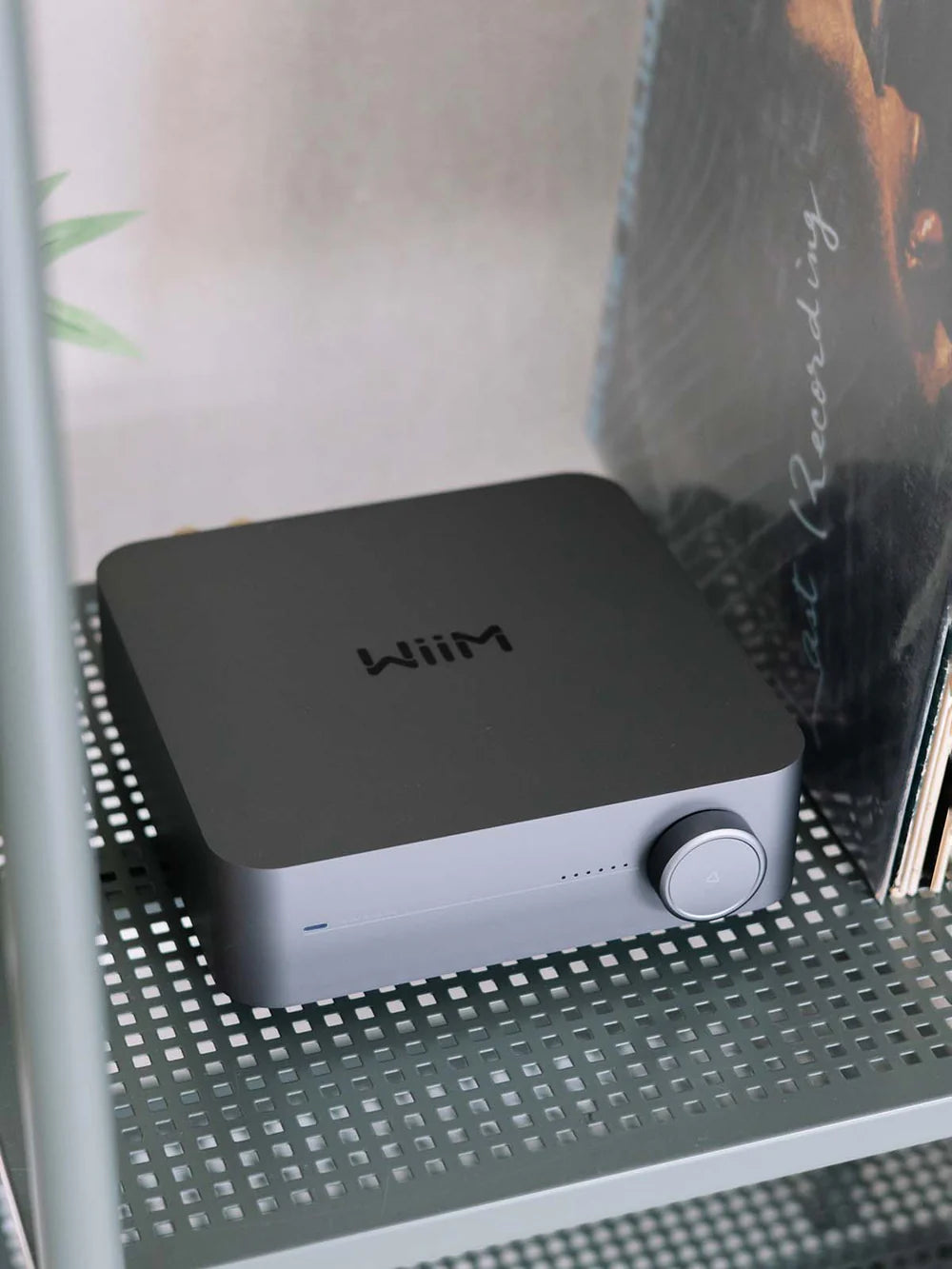

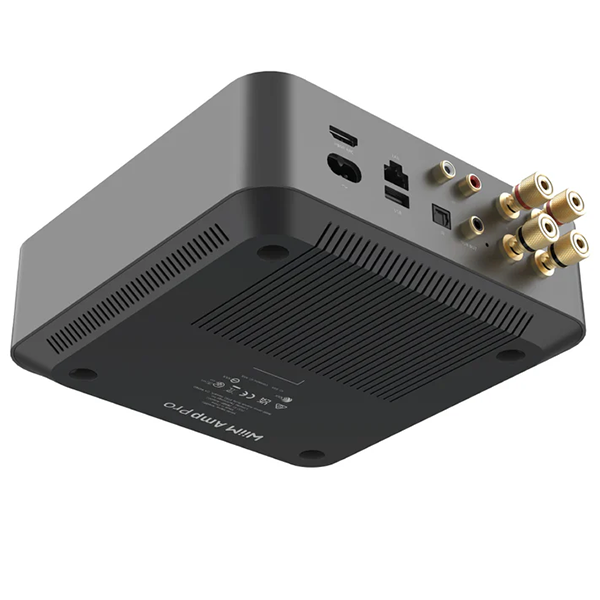

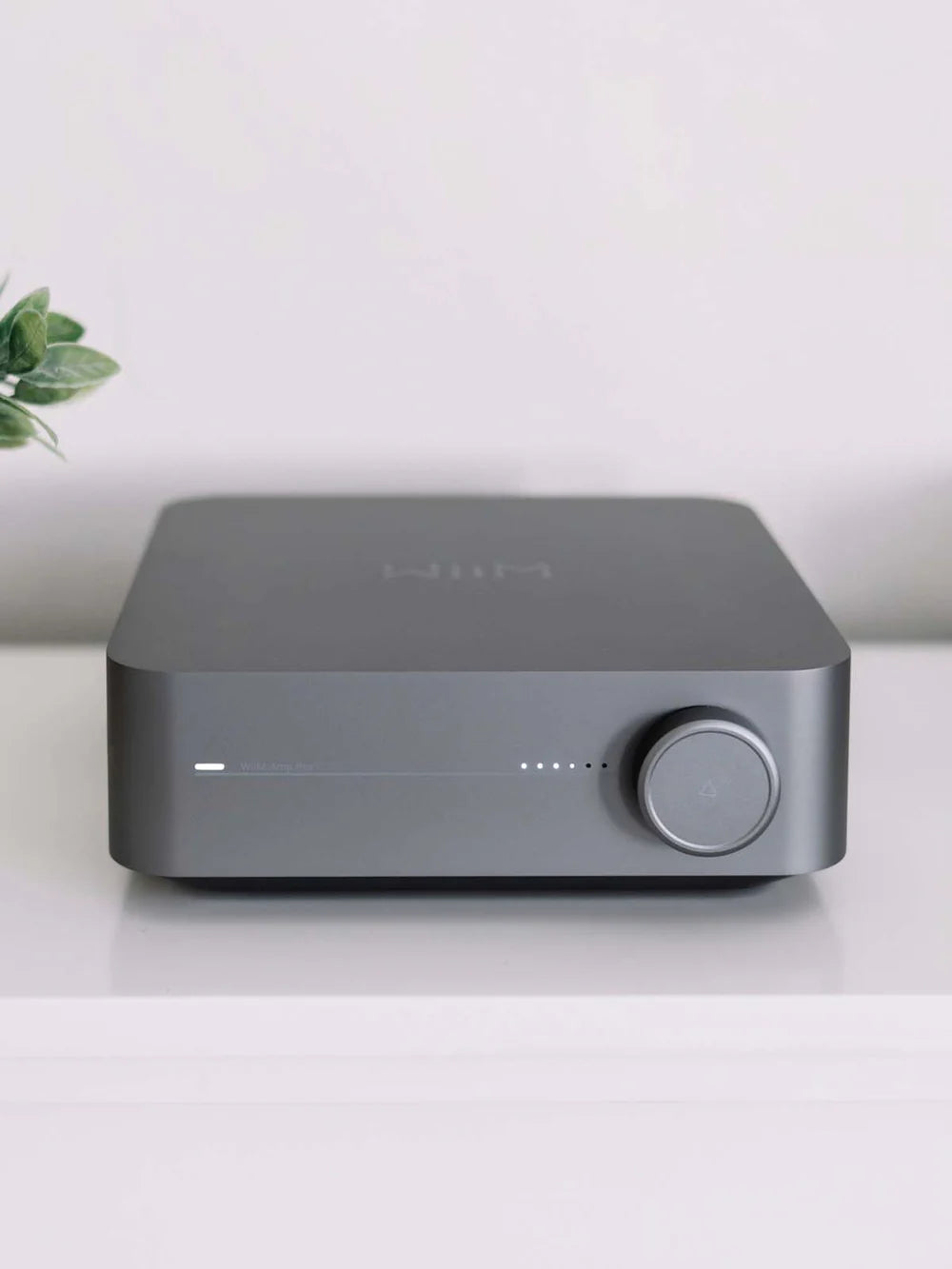

Meticulously Designed With Aluminium Shell & Heat Dissipation
WiiM Amp/ Amp Pro is meticulously designed with a sleek aluminium shell to offer versatile placement options that fit seamlessly into any space. The internal premium components and innovative circuitry ensure robust and crystal-clear amplification. The custom-designed heatsink ensures efficient cooling and optimal performance.
Meticulously Designed With Aluminium Shell & Heat Dissipation
WiiM Amp/ Amp Pro is meticulously designed with a sleek aluminium shell to offer versatile placement options that fit seamlessly into any space. The internal premium components and innovative circuitry ensure robust and crystal-clear amplification. The custom-designed heatsink ensures efficient cooling and optimal performance.


Effortless Voice Control via 360° Bluetooth Remote For User-Friendly Experience
WiiM Amp/ Amp Pro allows you to experience effortless control via the Bluetooth remote, featuring built-in Alexa for voice commands. It allows you to access various features conveniently without any barriers and easily perform actions like play, pause, track skipping, volume adjustments and muting. Even enjoy one-tap access to your favourite content through customisable presets.
Effortless Voice Control via 360° Bluetooth Remote For User-Friendly Experience
WiiM Amp/ Amp Pro allows you to experience effortless control via the Bluetooth remote, featuring built-in Alexa for voice commands. It allows you to access various features conveniently without any barriers and easily perform actions like play, pause, track skipping, volume adjustments and muting. Even enjoy one-tap access to your favourite content through customisable presets.
